Manufacturer Part Number: | BK/S505-V-6.3-R |
---|---|
Manufacturer: | Eaton |
Product Category: | Fuses |
Available Quantity: | 10198 Pieces |
Unit Price: | Quote by Email |

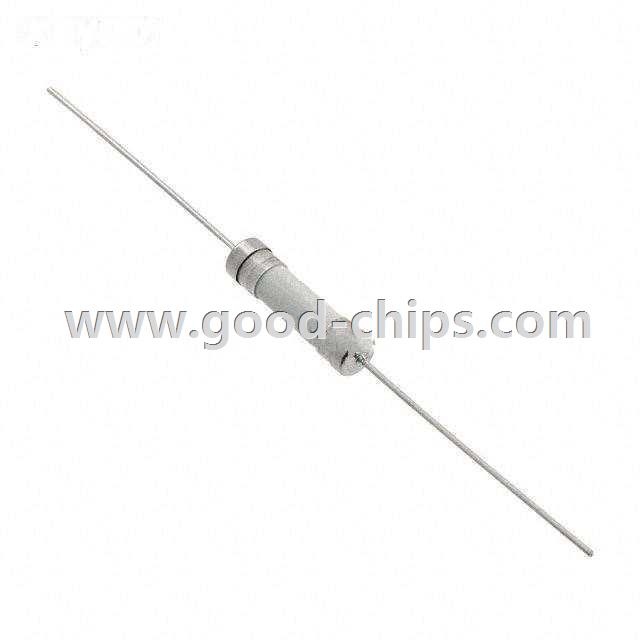

Description: | FUSE CERAMIC 6.3A 250VAC 5X20MM |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BK/S505-V-6.3-R Datasheet |
Internal Part Number | 898-BK/S505-V-6.3-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | S505-V-R Series 05/Mar/2015 | |
PCN Design/Specification | S505 Series Select Ratings 5/Feb/2009 | |
Category | Circuit Protection | |
Family | Fuses | |
Manufacturer | Eaton | |
Series | S505 | |
Packaging | Bulk | |
Part Status | Obsolete | |
Fuse Type | Cartridge, Ceramic | |
Current Rating | 6.3A | |
Voltage Rating - AC | 250V | |
Voltage Rating - DC | - | |
Response Time | Slow | |
Package / Case | 5mm x 20mm (Axial) | |
Mounting Type | Through Hole | |
Breaking Capacity @ Rated Voltage | 1.5kA | |
Melting I²t | 111 | |
Approvals | BSI, CCC/CQC, CSA, cULus, IMQ, KC, PSE/JET, SEMKO, VDE | |
Operating Temperature | - | |
Color | - | |
Size / Dimension | 0.218" Dia x 0.831" L (5.54mm x 21.10mm) | |
DC Cold Resistance | 0.0102 Ohm | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BK/S505-V-6.3-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BK/S505-V-6.3-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of BK/S505-V-6.3-R is new and unused, you can buy BK/S505-V-6.3-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BK/S505-V-6.3-R.
