| Manufacturer Part Number: | BK/S504-500MA |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fuses |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

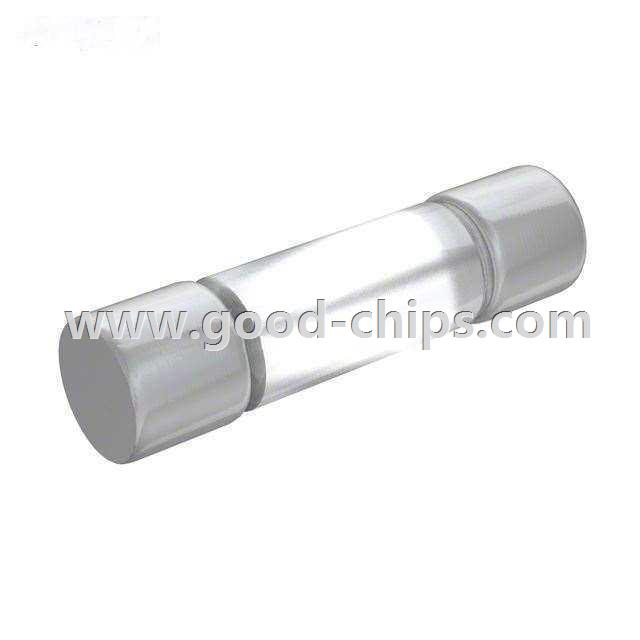

| Description: | FUSE GLASS 500MA 250VAC 5X20MM |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BK/S504-500MA Datasheet |
| Internal Part Number | 898-BK/S504-500MA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | S50x, GDC Series Part Numbering/RoHS | |
| PCN Obsolescence/ EOL | S504 Series 9/Mar/2009 | |
| Category | Circuit Protection | |
| Family | Fuses | |
| Manufacturer | Eaton | |
| Series | S504 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Fuse Type | Cartridge, Glass | |
| Current Rating | 500mA | |
| Voltage Rating - AC | 250V | |
| Voltage Rating - DC | - | |
| Response Time | Slow | |
| Package / Case | 5mm x 20mm | |
| Mounting Type | Holder | |
| Breaking Capacity @ Rated Voltage | 35A | |
| Melting I²t | 0.75 | |
| Approvals | BSI, IMQ, SEMKO, UL, VDE | |
| Operating Temperature | - | |
| Color | - | |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
| DC Cold Resistance | 0.27 Ohm | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BK/S504-500MA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BK/S504-500MA is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of BK/S504-500MA is new and unused, you can buy BK/S504-500MA Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BK/S504-500MA.
