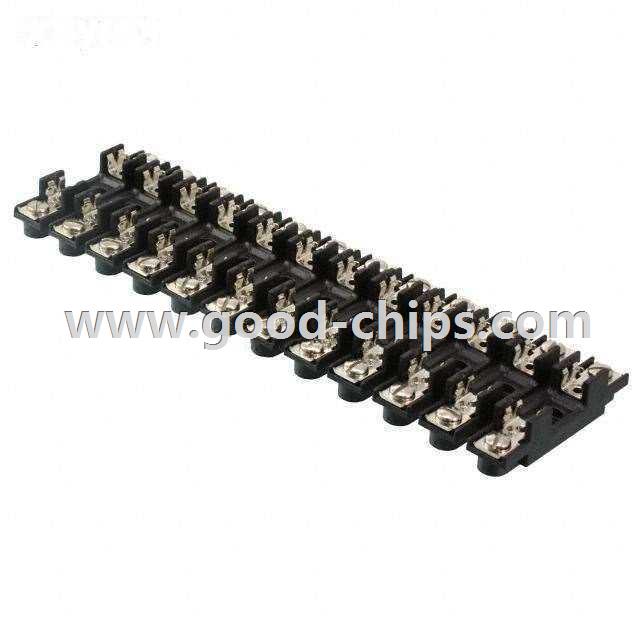

| Manufacturer Part Number: | BK/S-8301-12-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fuseholders |
| Available Quantity: | 9105 Pieces |
| Unit Price: | Quote by Email |
| Description: | FUSE BLOCK CART 300V CHASS MNT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BK/S-8301-12-R Datasheet |
| Internal Part Number | 898-BK/S-8301-12-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | S -8yyy,HTC-yy,PC,SR-5,SS-5 Series 01/May/2014 | |
| Online Catalog | S-8000 Series | |
| Category | Circuit Protection | |
| Family | Fuseholders | |
| Manufacturer | Eaton | |
| Series | S-8000 | |
| Part Status | Active | |
| Fuseholder Type | Block | |
| Fuse Type | Cartridge | |
| For Use With/Related Products | 3AG | |
| Fuse Size | 1/4" Dia x 1-1/4" L (6.35mm x 31.8mm) | |
| Number of Circuits | 12 | |
| Voltage | 300V | |
| Current Rating | 30A | |
| Mounting Type | Chassis Mount | |
| Orientation | - | |
| Termination Style | Screw Terminal | |
| Contact Material | Spring Bronze | |
| Contact Finish | Tin-Lead | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BK/S-8301-12-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BK/S-8301-12-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of BK/S-8301-12-R is new and unused, you can buy BK/S-8301-12-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BK/S-8301-12-R.
