Manufacturer Part Number: | BH6069GU-E2 |
---|---|
Manufacturer: | Rohm Semiconductor |
Product Category: | PMIC - LED Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | LED Driver IC 15 + 2LDOs Output DC DC Regulator Switched Capacitor (Charge Pump) 270mA (Switch) VCSP85H5 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BH6069GU-E2 Datasheet |
Internal Part Number | 898-BH6069GU-E2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - LED Drivers | |
Manufacturer | Rohm Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | DC DC Regulator | |
Topology | Switched Capacitor (Charge Pump) | |
Internal Switch(s) | - | |
Number of Outputs | 15 + 2LDOs | |
Voltage - Supply (Min) | 3.15V | |
Voltage - Supply (Max) | 4.5V | |
Voltage - Output | - | |
Current - Output / Channel | 270mA (Switch) | |
Frequency | - | |
Dimming | - | |
Applications | - | |
Operating Temperature | -35°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |

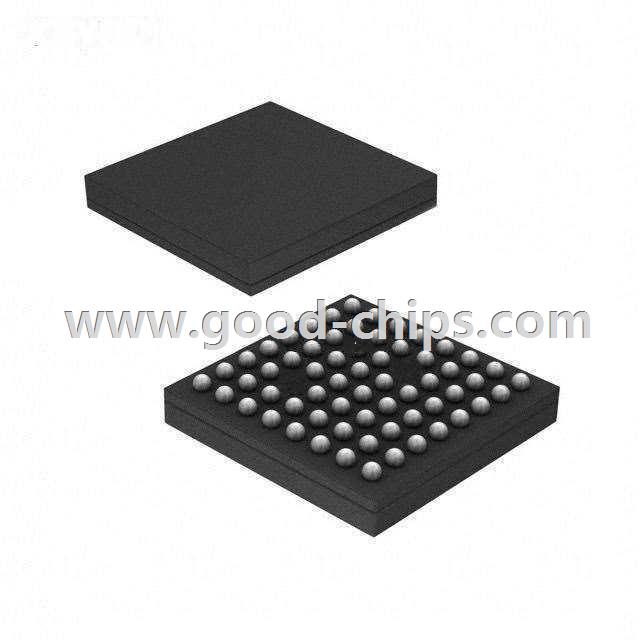

Package / Case | 62-VFBGA | |
Supplier Device Package | VCSP85H5 | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BH6069GU-E2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BH6069GU-E2 is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of BH6069GU-E2 is new and unused, you can buy BH6069GU-E2 Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BH6069GU-E2.
