| Manufacturer Part Number: | BGF106CE6328XTSA1 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC EMI Filter 2nd Order Low Pass 3 Channel R = 47 Ohms, 100 Ohms, C = 16.5pF (Total) 8-UFBGA, WLCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BGF106CE6328XTSA1 Datasheet |
| Internal Part Number | 898-BGF106CE6328XTSA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 07/Nov/2013 | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Low Pass | |
| Filter Order | 2nd | |
| Technology | RC | |
| Number of Channels | 3 | |
| Center / Cutoff Frequency | 290MHz (Cutoff) | |
| Attenuation Value | 16.9dB @ 800MHz ~ 4GHz | |
| Resistance - Channel (Ohms) | 47, 100 | |
| Current | - | |
| Values | R = 47 Ohms, 100 Ohms, C = 16.5pF (Total) | |
| ESD Protection | Yes | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | Data Lines for Mobile Devices | |
| Voltage - Rated | 5.5V | |
| Mounting Type | Surface Mount | |

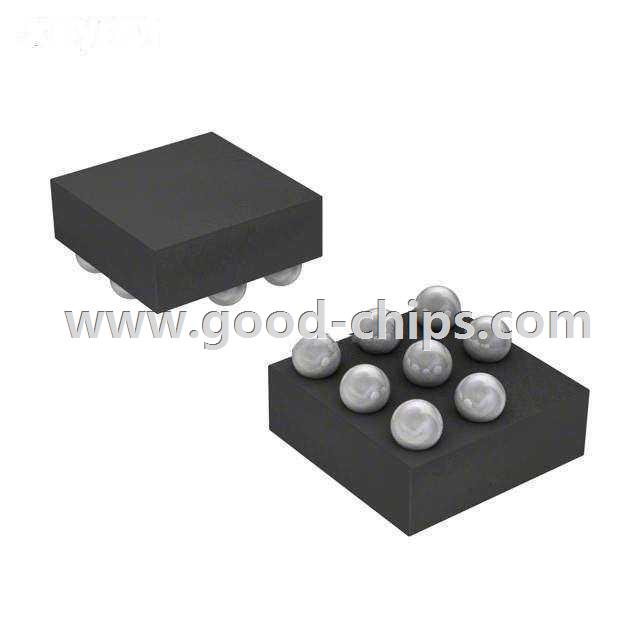

| Package / Case | 8-UFBGA, WLCSP | |
| Size / Dimension | 0.047" L x 0.047" W (1.20mm x 1.20mm) | |
| Height | 0.026" (0.65mm) | |
| Standard Package | 4,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BGF106CE6328XTSA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BGF106CE6328XTSA1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of BGF106CE6328XTSA1 is new and unused, you can buy BGF106CE6328XTSA1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BGF106CE6328XTSA1.
