| Manufacturer Part Number: | BD8316GWL-E2 |
|---|---|
| Manufacturer: | Rohm Semiconductor |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Boost, Buck-Boost Switching Regulator IC Positive and Negative (Dual Rail) Adjustable 5.5V, -1V 2 Output 1A (Switch) 11-UFBGA, WLCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BD8316GWL-E2 Datasheet |
| Internal Part Number | 898-BD8316GWL-E2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Multi-Topology | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Rohm Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Up, Step-Up/Step-Down | |
| Output Configuration | Positive and Negative (Dual Rail) | |
| Topology | Boost, Buck-Boost | |
| Output Type | Adjustable | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 2.5V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output (Min/Fixed) | 5.5V, -1V | |
| Voltage - Output (Max) | 18V, -9V | |
| Current - Output | 1A (Switch) | |
| Frequency - Switching | 1.6MHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -35°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

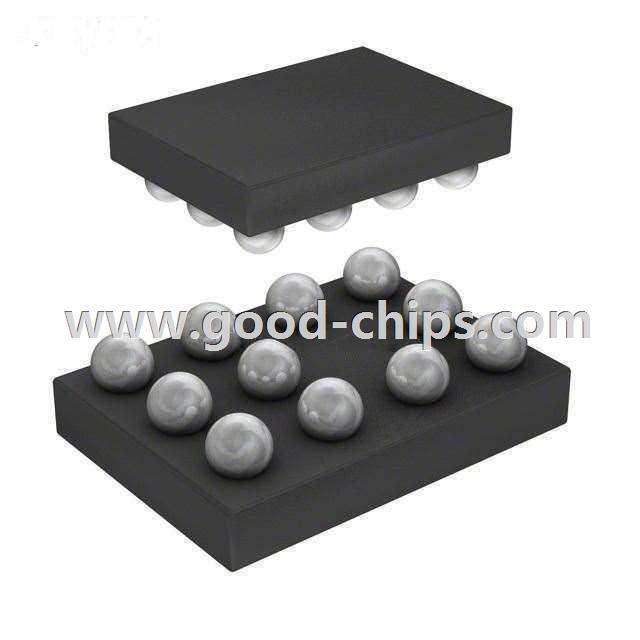

| Package / Case | 11-UFBGA, WLCSP | |
| Supplier Device Package | UCSP50L1 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BD8316GWL-E2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BD8316GWL-E2 is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of BD8316GWL-E2 is new and unused, you can buy BD8316GWL-E2 Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BD8316GWL-E2.
