| Manufacturer Part Number: | BD71805MWV-E2 |
|---|---|
| Manufacturer: | Rohm Semiconductor |
| Product Category: | PMIC - Voltage Regulators - Linear + Switching |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear And Switching Voltage Regulator IC 7 Output Step-Down (Buck) Synchronous (4), Linear (LDO) (3) 2.5MHz 64-VFQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BD71805MWV-E2 Datasheet |
| Internal Part Number | 898-BD71805MWV-E2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | BD71805 Power Management IC (PMIC) | |
| Online Catalog | Linear + Switching | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear + Switching | |
| Manufacturer | Rohm Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Not For New Designs | |
| Topology | Step-Down (Buck) Synchronous (4), Linear (LDO) (3) | |
| Function | Any Function | |
| Number of Outputs | 7 | |
| Frequency - Switching | 2.5MHz | |
| Voltage/Current - Output 1 | 0.8 V ~ 2 V, 1A | |
| Voltage/Current - Output 2 | 0.8 V ~ 2 V, 2A | |
| Voltage/Current - Output 3 | 1 V ~ 2.7 V, 1A | |
| w/LED Driver | No | |
| w/Supervisor | No | |
| w/Sequencer | Yes | |
| Voltage - Supply | 1.5 V ~ 28 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

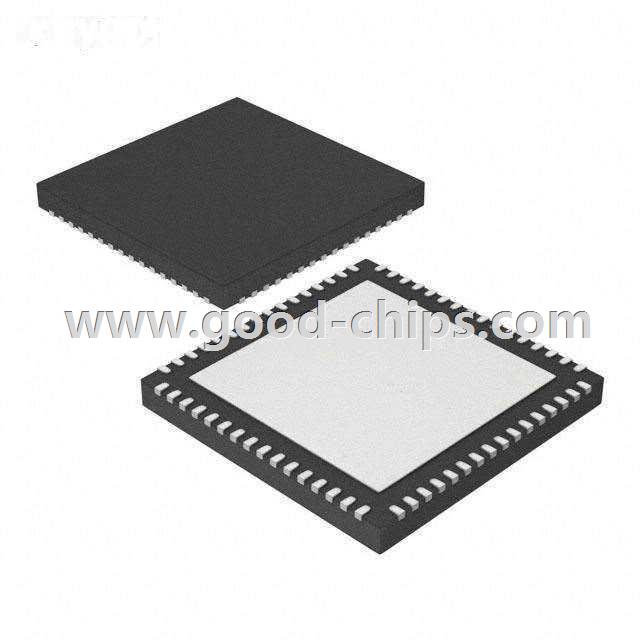

| Package / Case | 64-VFQFN Exposed Pad | |
| Supplier Device Package | 64-UQFN | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BD71805MWV-E2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BD71805MWV-E2 is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of BD71805MWV-E2 is new and unused, you can buy BD71805MWV-E2 Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BD71805MWV-E2.
