Manufacturer Part Number: | BD6754KN-E2 |
---|---|
Manufacturer: | Rohm Semiconductor |
Product Category: | PMIC - Motor Drivers, Controllers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Bipolar Motor Driver Serial 36-VQFN (6x6) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BD6754KN-E2 Datasheet |
Internal Part Number | 898-BD6754KN-E2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Motor Drivers, Controllers | |
Manufacturer | Rohm Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Motor Type - Stepper | Bipolar | |
Motor Type - AC, DC | - | |
Function | Driver - Fully Integrated, Control and Power Stage | |
Output Configuration | Half Bridge (10) | |
Interface | Serial | |
Technology | - | |
Step Resolution | - | |
Applications | General Purpose | |
Current - Output | 500mA | |
Voltage - Supply | 2.7 V ~ 5.5 V | |
Voltage - Load | 2.7 V ~ 5.5 V | |
Operating Temperature | -20°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

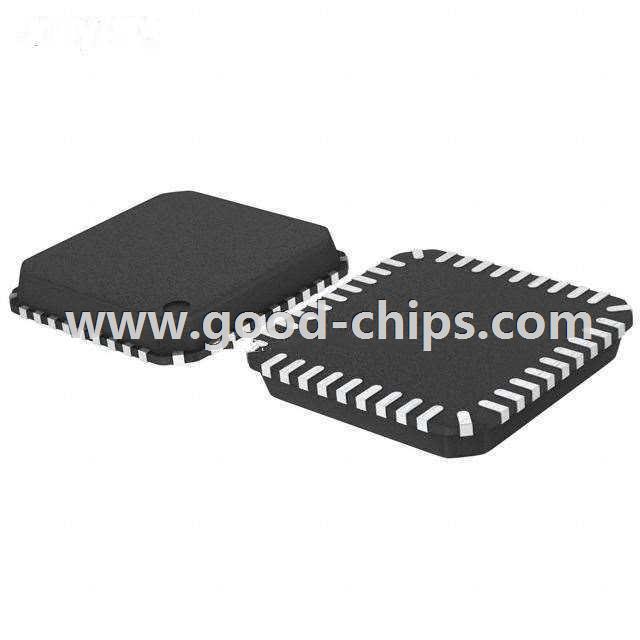

Package / Case | 36-VFQFN | |
Supplier Device Package | 36-VQFN (6x6) | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BD6754KN-E2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BD6754KN-E2 is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of BD6754KN-E2 is new and unused, you can buy BD6754KN-E2 Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BD6754KN-E2.
