Manufacturer Part Number: | BC413159A10-IPK-E4 |
---|---|
Manufacturer: | CSR PLC |
Product Category: | RF Transceiver ICs |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC RF TxRx + MCU Bluetooth Bluetooth v2.0 +EDR, Class 1, 2 and 3 2.4GHz 96-TFBGA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BC413159A10-IPK-E4 Datasheet |
Internal Part Number | 898-BC413159A10-IPK-E4 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector IoT Product Selector | |
PCN Packaging | CSR Product Mark, Pkg, Label Update 29/Apr/2016 | |
Category | RF/IF and RFID | |
Family | RF Transceiver ICs | |
Manufacturer | CSR PLC | |
Series | BlueCore® | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | TxRx + MCU | |
RF Family/Standard | Bluetooth | |
Protocol | Bluetooth v2.0 +EDR, Class 1, 2 and 3 | |
Modulation | - | |
Frequency | 2.4GHz | |
Data Rate (Max) | 3Mbps | |
Power - Output | 4dBm | |
Sensitivity | -85dBm | |
Memory Size | - | |
Serial Interfaces | - | |
GPIO | - | |
Voltage - Supply | 1.7 V ~ 3.6 V | |
Current - Receiving | - | |
Current - Transmitting | - | |
Operating Temperature | -40°C ~ 105°C | |

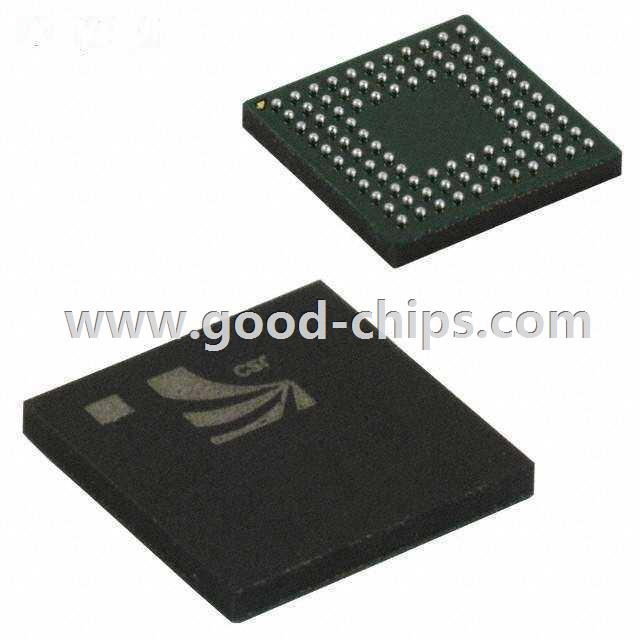

Package / Case | 96-TFBGA | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BC413159A10-IPK-E4 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BC413159A10-IPK-E4 is in stock for immediate shipping now. We are the distributor of CSR PLC all series components. The condition of BC413159A10-IPK-E4 is new and unused, you can buy BC413159A10-IPK-E4 CSR PLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BC413159A10-IPK-E4.
