| Manufacturer Part Number: | BBT3420-SN |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Interface - Drivers, Receivers, Transceivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4/4 Transceiver Full XAUI, XGMII, MDC/MDIO 289-BGA (19x19) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BBT3420-SN Datasheet |
| Internal Part Number | 898-BBT3420-SN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 13/Apr/2011 | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Drivers, Receivers, Transceivers | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Type | Transceiver | |
| Protocol | XAUI, XGMII, MDC/MDIO | |
| Number of Drivers/Receivers | 4/4 | |
| Duplex | Full | |
| Receiver Hysteresis | - | |
| Data Rate | 12.75Gbps | |
| Voltage - Supply | 1.7 V ~ 1.9 V | |
| Operating Temperature | 0°C ~ 70°C | |
| Mounting Type | Surface Mount | |

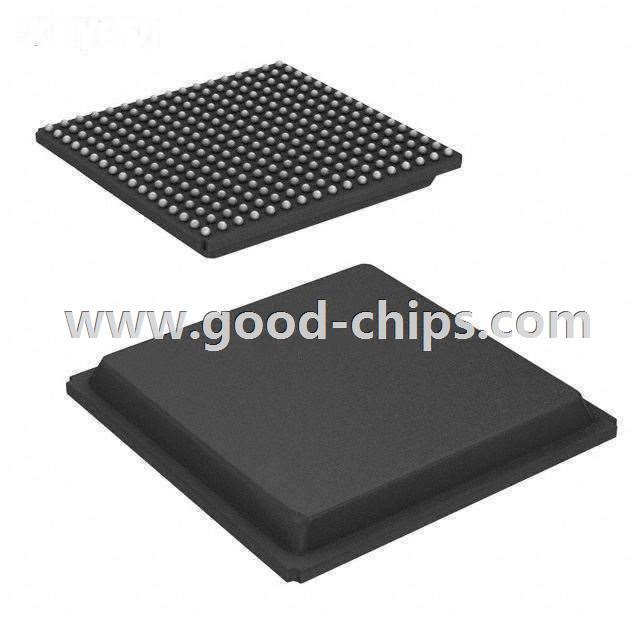

| Package / Case | 289-BGA | |
| Supplier Device Package | 289-BGA (19x19) | |
| Standard Package | 84 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BBT3420-SN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BBT3420-SN is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of BBT3420-SN is new and unused, you can buy BBT3420-SN Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BBT3420-SN.
