Manufacturer Part Number: | BAV99BRW-TP |
---|---|
Manufacturer: | Micro Commercial Co |
Product Category: | Diodes - Rectifiers - Arrays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Diode Array 2 Pair Series Connection Standard 75V 150mA Surface Mount 6-TSSOP, SC-88, SOT-363 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BAV99BRW-TP Datasheet |
Internal Part Number | 898-BAV99BRW-TP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Diode Handling and Mounting | |
Online Catalog | Diode Array | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Arrays | |
Manufacturer | Micro Commercial Co | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Diode Configuration | 2 Pair Series Connection | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 75V | |
Current - Average Rectified (Io) (per Diode) | 150mA | |
Voltage - Forward (Vf) (Max) @ If | 1.25V @ 150mA | |
Speed | Small Signal =< 200mA (Io), Any Speed | |
Reverse Recovery Time (trr) | 4ns | |
Current - Reverse Leakage @ Vr | 2.5µA @ 75V | |
Mounting Type | Surface Mount | |

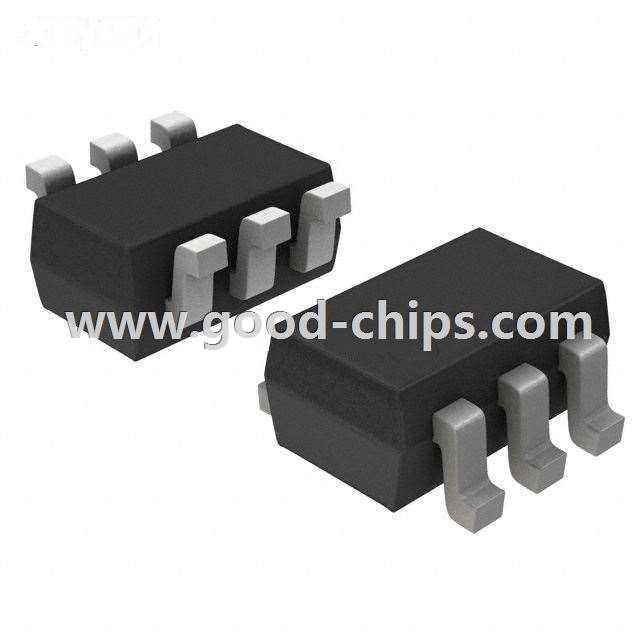

Package / Case | 6-TSSOP, SC-88, SOT-363 | |
Supplier Device Package | SOT-363 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BAV99BRW-TP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BAV99BRW-TP is in stock for immediate shipping now. We are the distributor of Micro Commercial Co all series components. The condition of BAV99BRW-TP is new and unused, you can buy BAV99BRW-TP Micro Commercial Co with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BAV99BRW-TP.
