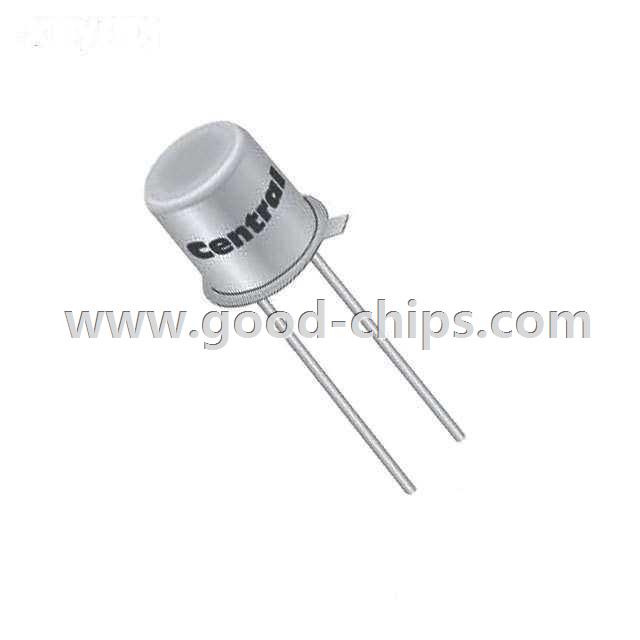

| Manufacturer Part Number: | BAV45 |
|---|---|
| Manufacturer: | Central Semiconductor Corp |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Standard 20V 50mA Through Hole TO-18 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BAV45 Datasheet |
| Internal Part Number | 898-BAV45 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Declaration of Compliance | |
| PCN Obsolescence/ EOL | EOL 30/Jun/2016 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Central Semiconductor Corp | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 20V | |
| Current - Average Rectified (Io) | 50mA | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 10mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 600ns | |
| Current - Reverse Leakage @ Vr | 5pA @ 5V | |
| Capacitance @ Vr, F | 1.3pF @ 0V, 1MHz | |
| Mounting Type | Through Hole | |
| Package / Case | TO-18-2 | |
| Supplier Device Package | TO-18 | |
| Operating Temperature - Junction | -65°C ~ 125°C | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BAV45 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BAV45 is in stock for immediate shipping now. We are the distributor of Central Semiconductor Corp all series components. The condition of BAV45 is new and unused, you can buy BAV45 Central Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BAV45.
