| Manufacturer Part Number: | BAS7004SH6727XTSA1 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 2 Pair Series Connection Schottky 70V 70mA (DC) Surface Mount 6-VSSOP, SC-88, SOT-363 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BAS7004SH6727XTSA1 Datasheet |
| Internal Part Number | 898-BAS7004SH6727XTSA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 18/Sep/2013 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Diode Configuration | 2 Pair Series Connection | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 70V | |
| Current - Average Rectified (Io) (per Diode) | 70mA (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 15mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 100ps | |
| Current - Reverse Leakage @ Vr | 100nA @ 50V | |
| Mounting Type | Surface Mount | |

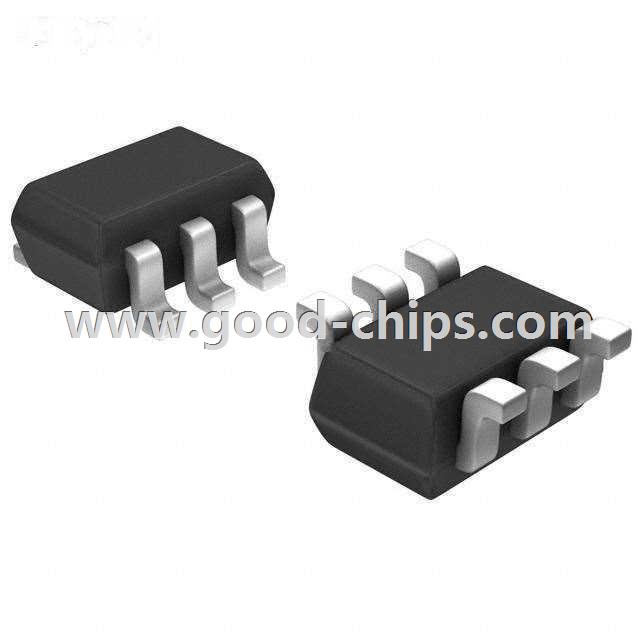

| Package / Case | 6-VSSOP, SC-88, SOT-363 | |
| Supplier Device Package | PG-SOT363-6 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BAS7004SH6727XTSA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BAS7004SH6727XTSA1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of BAS7004SH6727XTSA1 is new and unused, you can buy BAS7004SH6727XTSA1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BAS7004SH6727XTSA1.
