| Manufacturer Part Number: | BA9706K |
|---|---|
| Manufacturer: | Rohm Semiconductor |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Regulator Positive Output Step-Down DC-DC Controller IC 32-QFP (7x7) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BA9706K Datasheet |
| Internal Part Number | 898-BA9706K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Controllers | |
| Manufacturer | Rohm Semiconductor | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Output Type | Transistor Driver | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Number of Outputs | 3 | |
| Output Phases | 1 | |
| Voltage - Supply (Vcc/Vdd) | 3.6 V ~ 18 V | |
| Frequency - Switching | 514kHz, 790kHz | |
| Duty Cycle (Max) | - | |
| Synchronous Rectifier | Yes | |
| Clock Sync | No | |
| Serial Interfaces | - | |
| Control Features | Current Limit, Frequency Control | |
| Operating Temperature | -25°C ~ 75°C (TA) | |

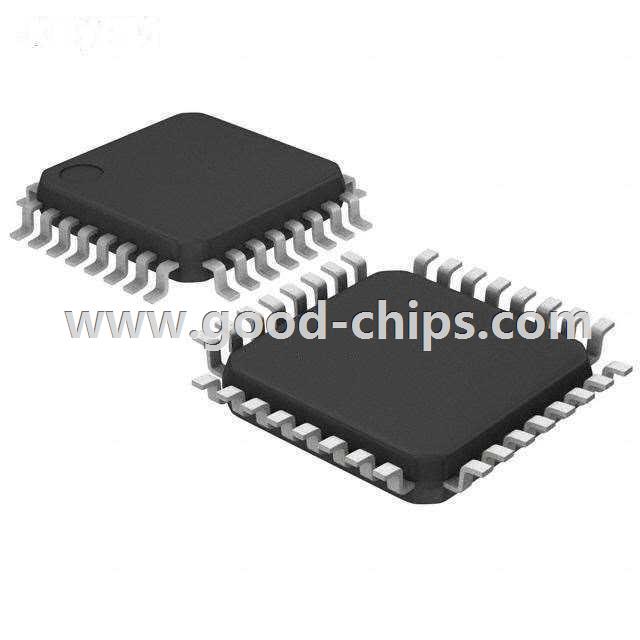

| Package / Case | 32-LQFP | |
| Supplier Device Package | 32-QFP (7x7) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BA9706K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BA9706K is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of BA9706K is new and unused, you can buy BA9706K Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BA9706K.
