Manufacturer Part Number: | BA6238AN |
---|---|
Manufacturer: | Rohm Semiconductor |
Product Category: | PMIC - Motor Drivers, Controllers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Motor Driver Bipolar Parallel 10-SIP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BA6238AN Datasheet |
Internal Part Number | 898-BA6238AN | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Motor Drivers, Controllers | |
Manufacturer | Rohm Semiconductor | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Motor Type - Stepper | - | |
Motor Type - AC, DC | Brushed DC | |
Function | Driver - Fully Integrated, Control and Power Stage | |
Output Configuration | Half Bridge (3) | |
Interface | Parallel | |
Technology | Bipolar | |
Step Resolution | - | |
Applications | General Purpose | |
Current - Output | 1.6A | |
Voltage - Supply | 8 V ~ 18 V | |
Voltage - Load | 8 V ~ 18 V | |
Operating Temperature | -25°C ~ 125°C (TJ) | |
Mounting Type | Through Hole | |

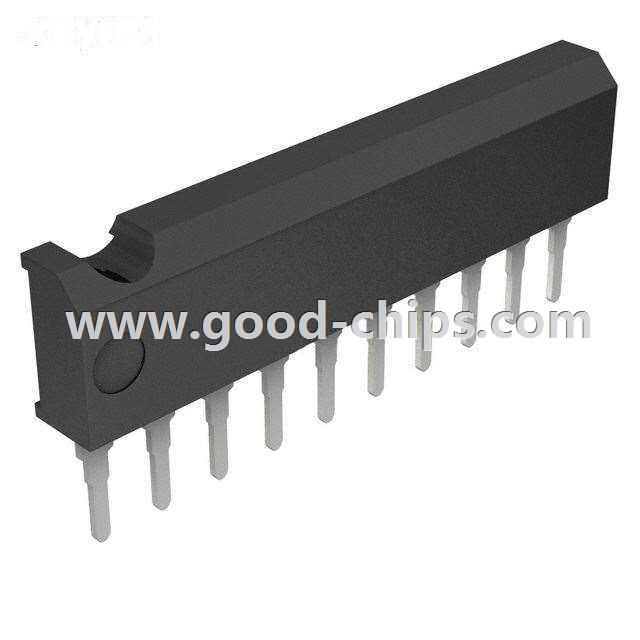

Package / Case | 10-SIP | |
Supplier Device Package | 10-SIP | |
Standard Package | 600 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BA6238AN | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BA6238AN is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of BA6238AN is new and unused, you can buy BA6238AN Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BA6238AN.
