Manufacturer Part Number: | B85321A6304B201 |
---|---|
Manufacturer: | EPCOS (TDK) |
Product Category: | EMI/RFI Filters (LC, RC Networks) |
Available Quantity: | 9029 Pieces |
Unit Price: | Quote by Email |

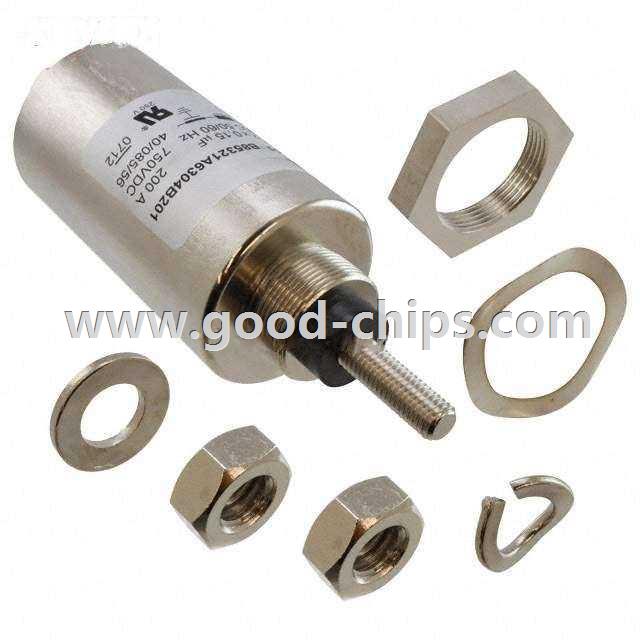

Description: | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 0.15µF 200A Axial - Threaded Terminals |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | B85321A6304B201 Datasheet |
Internal Part Number | 898-B85321A6304B201 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | B85131 Series | |
Category | Filters | |
Family | EMI/RFI Filters (LC, RC Networks) | |
Manufacturer | EPCOS (TDK) | |
Series | B85321 | |
Packaging | * | |
Part Status | Active | |
Type | Low Pass | |
Filter Order | 3rd | |
Technology | LC (Pi) | |
Number of Channels | 1 | |
Center / Cutoff Frequency | - | |
Attenuation Value | 100dB @ 100MHz ~ 1GHz | |
Resistance - Channel (Ohms) | - | |
Current | 200A | |
Values | C = 0.15µF | |
ESD Protection | No | |
Operating Temperature | -40°C ~ 85°C | |
Applications | General Purpose | |
Voltage - Rated | 750V | |
Mounting Type | Through Hole | |
Package / Case | Axial - Threaded Terminals | |
Size / Dimension | * | |
Height | * | |
Standard Package | 12 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | B85321A6304B201 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
B85321A6304B201 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B85321A6304B201 is new and unused, you can buy B85321A6304B201 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B85321A6304B201.
