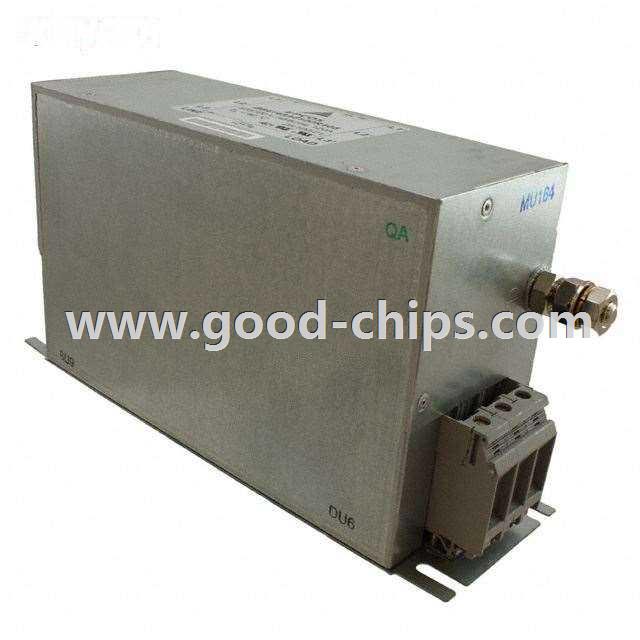

| Manufacturer Part Number: | B84143A120R105 |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Power Line Filter Modules |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | FILTER 3-LINE 300VAC 120A PANEL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B84143A120R105 Datasheet |
| Internal Part Number | 898-B84143A120R105 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | B84143A, B84143B, and B84143G Series | |
| Category | Filters | |
| Family | Power Line Filter Modules | |
| Manufacturer | EPCOS (TDK) | |
| Series | B84143A | |
| Part Status | Active | |
| Filter Type | Three Phase (Delta) | |
| Configuration | Single Stage | |
| Voltage - Rated DC | - | |
| Voltage - Rated AC | 520V, 300V | |
| Voltage - Rated AC (Phase to Ground/Neutral) | - | |
| Voltage - Rated AC (Phase to Phase) | - | |
| Current | 120A | |
| Frequency - Operating | 50/60Hz | |
| Applications | General Purpose | |
| Approvals | cUR, ENEC, UR | |
| Operating Temperature | -25°C ~ 100°C | |
| Mounting Type | Chassis Mount | |
| Termination Style | Terminal Block | |
| Inductance | - | |
| Standard Package | 2 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B84143A120R105 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B84143A120R105 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B84143A120R105 is new and unused, you can buy B84143A120R105 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B84143A120R105.
