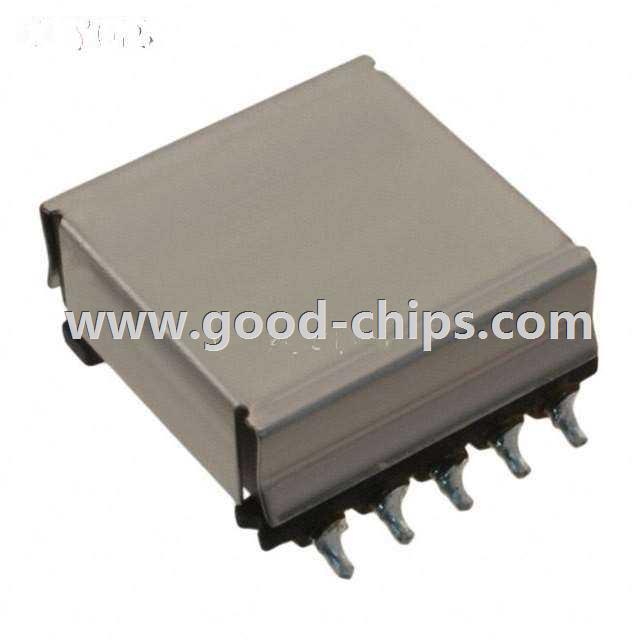

| Manufacturer Part Number: | B82802A30A320 |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Switching Converter, SMPS Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANSFORMER FLYBACK 36-60V SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82802A30A320 Datasheet |
| Internal Part Number | 898-B82802A30A320 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | B82802A Series | |
| Category | Transformers | |
| Family | Switching Converter, SMPS Transformers | |
| Manufacturer | EPCOS (TDK) | |
| Series | B82802A | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | For DC/DC Converters | |
| Applications | Flyback Converters | |
| Intended Chipset | - | |
| Voltage - Primary | 36 ~ 60V | |
| Voltage - Auxillary | - | |
| Voltage - Isolation | 1500Vrms | |
| Frequency | 100kHz | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 25.70mm L x 22.00mm W | |
| Height - Seated (Max) | 10.70mm | |
| Chipset Manufacturer | - | |
| Standard Package | 160 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82802A30A320 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82802A30A320 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82802A30A320 is new and unused, you can buy B82802A30A320 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82802A30A320.
