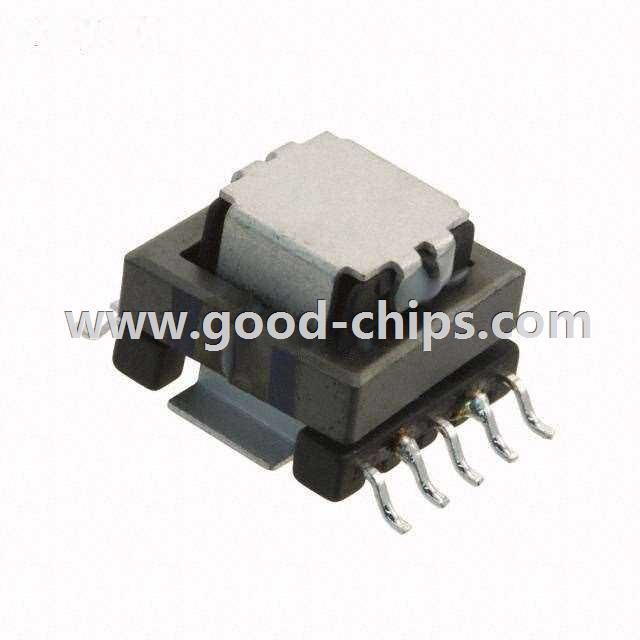

| Manufacturer Part Number: | B82801C565A100 |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Current Sense Transformers |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANSF CURRENT SENSE 5.6MH SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82801C565A100 Datasheet |
| Internal Part Number | 898-B82801C565A100 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | B82801C Series | |
| Category | Transformers | |
| Family | Current Sense Transformers | |
| Manufacturer | EPCOS (TDK) | |
| Series | B82801C | |
| Part Status | Active | |
| Turns Ratio - Primary:Secondary | 1 : 100 | |
| Frequency | 50kHz ~ 500kHz | |
| Inductance | 5.6mH | |
| Current Rating | 40A | |
| DC Resistance (DCR) | 0.28 mOhm Primary, 1 Ohm Secondary | |
| E.T. | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 14.22mm L x 13.46mm W | |
| Height - Seated (Max) | 10.00mm | |
| Termination Style | Gull Wing | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82801C565A100 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82801C565A100 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82801C565A100 is new and unused, you can buy B82801C565A100 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82801C565A100.
