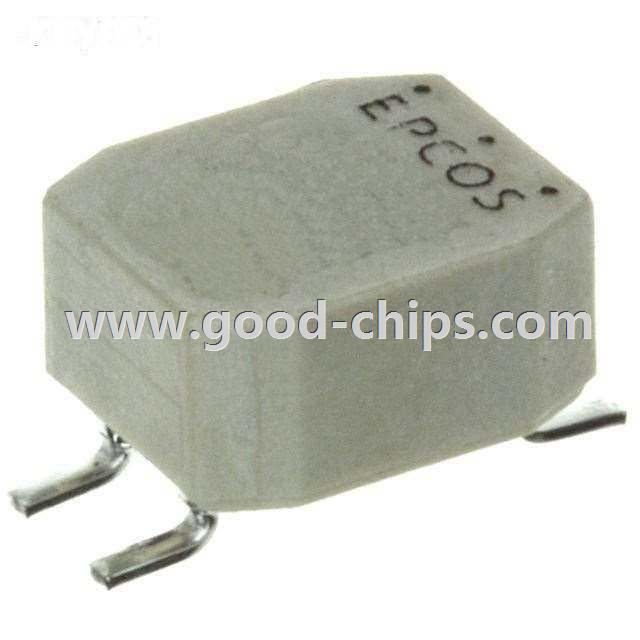

| Manufacturer Part Number: | B82793S253N201 |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 25µH @ 100kHz 2 Line Common Mode Choke Surface Mount 800mA DCR 110 mOhm (Typ) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82793S253N201 Datasheet |
| Internal Part Number | 898-B82793S253N201 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | B82793 Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | EPCOS (TDK) | |
| Series | B82793 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 25µH @ 100kHz | |
| Current Rating (Max) | 800mA | |
| DC Resistance (DCR) (Max) | 110 mOhm (Typ) | |
| Voltage Rating - DC | 80V | |
| Voltage Rating - AC | 42V | |
| Operating Temperature | -40°C ~ 125°C | |
| Ratings | AEC-Q200 | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.280" L x 0.236" W (7.10mm x 6.00mm) | |
| Height (Max) | 0.189" (4.80mm) | |
| Package / Case | Horizontal, 4 Gull Wing | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82793S253N201 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82793S253N201 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82793S253N201 is new and unused, you can buy B82793S253N201 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82793S253N201.
