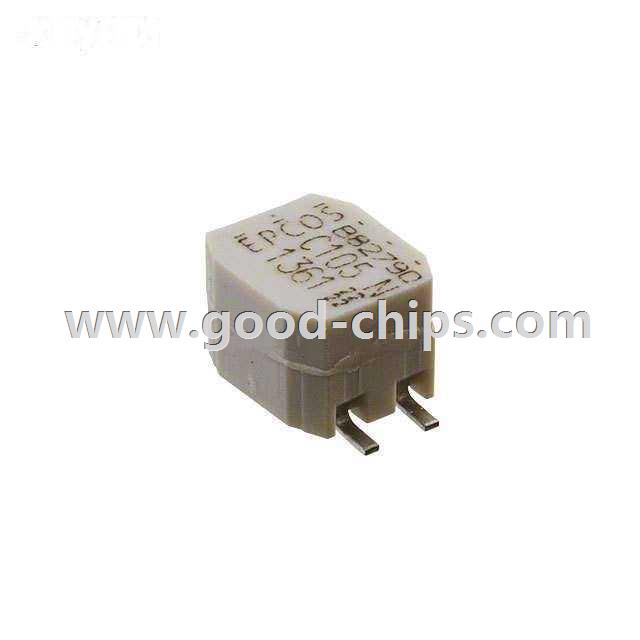

| Manufacturer Part Number: | B82790C474N215 |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 470µH @ 100kHz 2 Line Common Mode Choke Surface Mount 500mA DCR 170 mOhm (Typ) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82790C474N215 Datasheet |
| Internal Part Number | 898-B82790C474N215 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | B82790 Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | EPCOS (TDK) | |
| Series | B82790 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 470µH @ 100kHz | |
| Current Rating (Max) | 500mA | |
| DC Resistance (DCR) (Max) | 170 mOhm (Typ) | |
| Voltage Rating - DC | 80V | |
| Voltage Rating - AC | 42V | |
| Operating Temperature | -40°C ~ 125°C | |
| Ratings | AEC-Q200 | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.280" L x 0.236" W (7.10mm x 6.00mm) | |
| Height (Max) | 0.205" (5.20mm) | |
| Package / Case | Horizontal, 4 Gull Wing | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82790C474N215 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82790C474N215 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82790C474N215 is new and unused, you can buy B82790C474N215 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82790C474N215.
