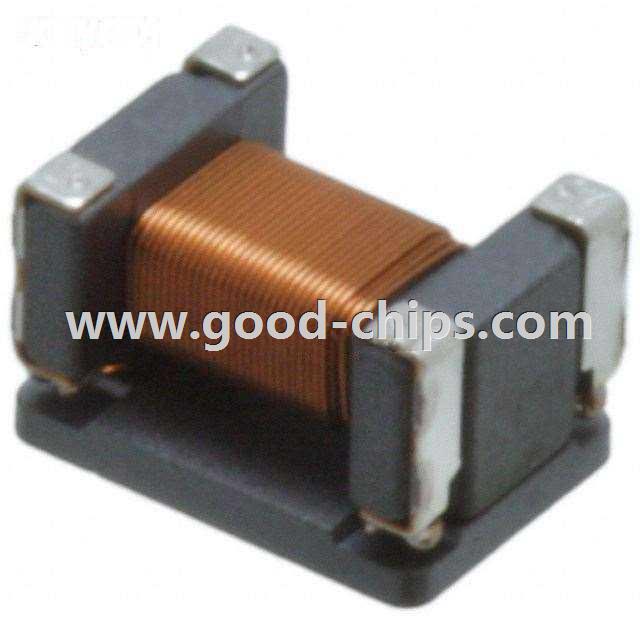

| Manufacturer Part Number: | B82787C104H2 |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 19010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 100µH @ 100kHz 2 Line Common Mode Choke Surface Mount 5.8 kOhm @ 10MHz 150mA DCR 2 Ohm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82787C104H2 Datasheet |
| Internal Part Number | 898-B82787C104H2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | B82787 Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | EPCOS (TDK) | |
| Series | B82787 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | 5.8 kOhm @ 10MHz | |
| Inductance @ Frequency | 100µH @ 100kHz | |
| Current Rating (Max) | 150mA | |
| DC Resistance (DCR) (Max) | 2 Ohm | |
| Voltage Rating - DC | 50V | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 150°C | |
| Ratings | AEC-Q200 | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | |
| Height (Max) | 0.118" (3.00mm) | |
| Package / Case | Horizontal, 4 PC Pad | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82787C104H2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82787C104H2 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82787C104H2 is new and unused, you can buy B82787C104H2 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82787C104H2.
