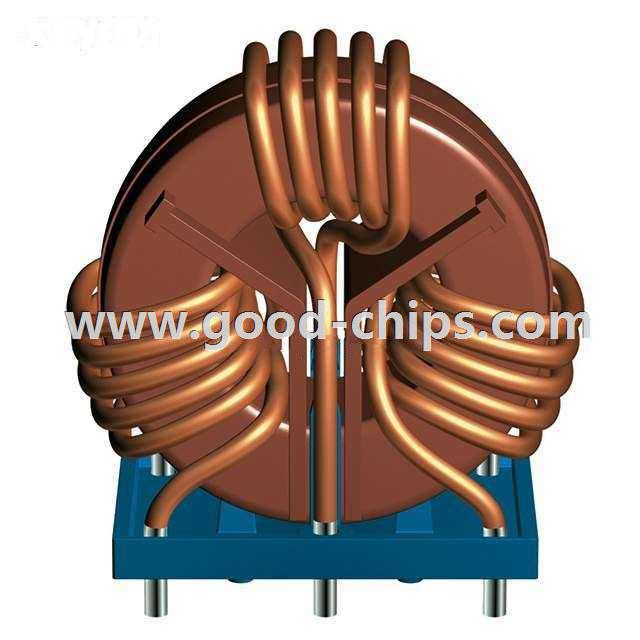

| Manufacturer Part Number: | B82747E6253A40 |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9058 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1mH @ 100kHz 3 Line Common Mode Choke Through Hole 25A DCR 2.8 mOhm (Typ) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82747E6253A40 Datasheet |
| Internal Part Number | 898-B82747E6253A40 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | TDK EPCOS High Current Chokes | Digi-Key Daily | |
| Featured Product | High Current Chokes | |
| Online Catalog | B82747 Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | EPCOS (TDK) | |
| Series | B82747 | |
| Packaging | Tray | |
| Part Status | Active | |
| Filter Type | Power Line | |
| Number of Lines | 3 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 1mH @ 100kHz | |
| Current Rating (Max) | 25A | |
| DC Resistance (DCR) (Max) | 2.8 mOhm (Typ) | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | 600/350V | |
| Operating Temperature | -40°C ~ 125°C | |
| Ratings | - | |
| Approvals | UR | |
| Features | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 2.559" L x 1.457" W (65.00mm x 37.00mm) | |
| Height (Max) | 2.598" (66.00mm) | |
| Package / Case | Vertical, 6 PC Pin | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82747E6253A40 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82747E6253A40 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82747E6253A40 is new and unused, you can buy B82747E6253A40 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82747E6253A40.
