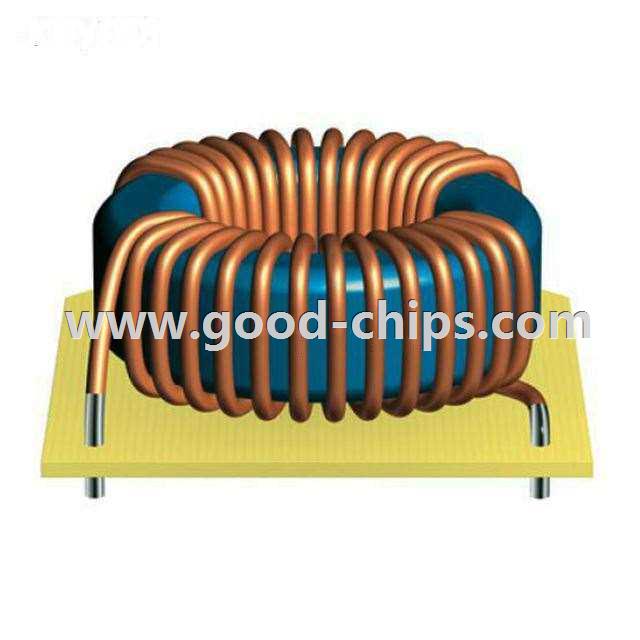

| Manufacturer Part Number: | B82726S2183N20 |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9120 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1.3mH @ 10kHz 2 Line Common Mode Choke Through Hole 18A DCR 5 mOhm (Typ) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82726S2183N20 Datasheet |
| Internal Part Number | 898-B82726S2183N20 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | TDK EPCOS High Current Chokes | Digi-Key Daily | |
| Featured Product | High Current Chokes | |
| Online Catalog | B82726 Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | EPCOS (TDK) | |
| Series | B82726 | |
| Packaging | Tray | |
| Part Status | Active | |
| Filter Type | Power Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 1.3mH @ 10kHz | |
| Current Rating (Max) | 18A | |
| DC Resistance (DCR) (Max) | 5 mOhm (Typ) | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | 250V | |
| Operating Temperature | -40°C ~ 125°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 1.969" L x 0.906" W (50.00mm x 23.00mm) | |
| Height (Max) | 1.929" (49.00mm) | |
| Package / Case | Vertical, 4 PC Pin | |
| Standard Package | 60 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82726S2183N20 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82726S2183N20 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82726S2183N20 is new and unused, you can buy B82726S2183N20 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82726S2183N20.
