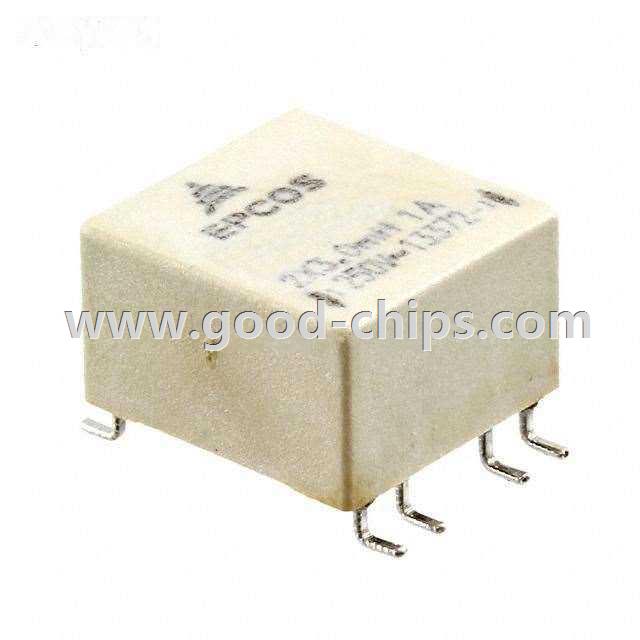

| Manufacturer Part Number: | B82720S2102N40 |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 15510 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3mH @ 10kHz 2 Line Common Mode Choke Surface Mount 1A DCR 220 mOhm (Typ) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82720S2102N40 Datasheet |
| Internal Part Number | 898-B82720S2102N40 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | B82720 Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | EPCOS (TDK) | |
| Series | B82720 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Power Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 3mH @ 10kHz | |
| Current Rating (Max) | 1A | |
| DC Resistance (DCR) (Max) | 220 mOhm (Typ) | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | 250V | |
| Operating Temperature | -40°C ~ 125°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.571" L x 0.524" W (14.50mm x 13.30mm) | |
| Height (Max) | 0.421" (10.70mm) | |
| Package / Case | Horizontal, 8 Gull Wing | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82720S2102N40 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82720S2102N40 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82720S2102N40 is new and unused, you can buy B82720S2102N40 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82720S2102N40.
