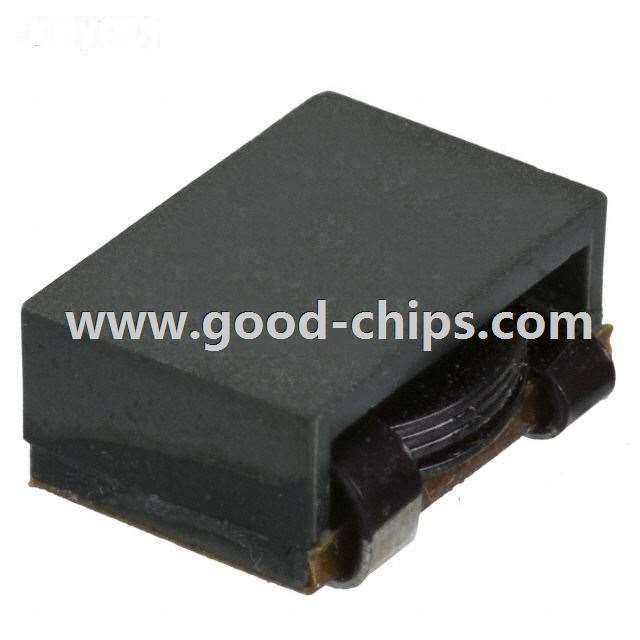

| Manufacturer Part Number: | B82559A112A13 |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Fixed Inductors |
| Available Quantity: | 11568 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1.1µH Shielded Wirewound Inductor 20A 1.72 mOhm Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82559A112A13 Datasheet |
| Internal Part Number | 898-B82559A112A13 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ERU25 Inductors | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | HPI 13 Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | EPCOS (TDK) | |
| Series | HPI 13 | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 1.1µH | |
| Tolerance | ±10% | |
| Current Rating | 20A | |
| Current - Saturation | 20A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 1.72 mOhm | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 130°C | |
| Frequency - Test | 10kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.512" L x 0.421" W (13.00mm x 10.70mm) | |
| Height - Seated (Max) | 0.195" (4.95mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82559A112A13 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82559A112A13 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82559A112A13 is new and unused, you can buy B82559A112A13 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82559A112A13.
