Manufacturer Part Number: | B82498F3569K |
---|---|
Manufacturer: | EPCOS (TDK) |
Product Category: | Fixed Inductors |
Available Quantity: | 18010 Pieces |
Unit Price: | Quote by Email |

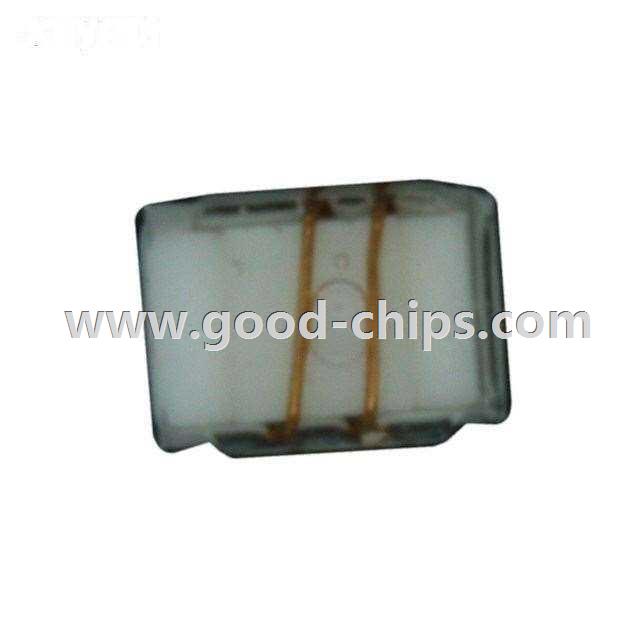

Description: | 5.6nH Unshielded Wirewound Inductor 900mA 40 mOhm Max 0805 (2012 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | B82498F3569K Datasheet |
Internal Part Number | 898-B82498F3569K | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | SIMID Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | EPCOS (TDK) | |
Series | SIMID | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ceramic | |
Inductance | 5.6nH | |
Tolerance | ±10% | |
Current Rating | 900mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 40 mOhm Max | |
Q @ Freq | 50 @ 1GHz | |
Frequency - Self Resonant | 7GHz | |
Ratings | AEC-Q200 | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 250MHz | |
Mounting Type | Surface Mount | |
Package / Case | 0805 (2012 Metric) | |
Size / Dimension | 0.091" L x 0.067" W (2.30mm x 1.70mm) | |
Height - Seated (Max) | 0.055" (1.40mm) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | B82498F3569K | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
B82498F3569K is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82498F3569K is new and unused, you can buy B82498F3569K EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82498F3569K.
