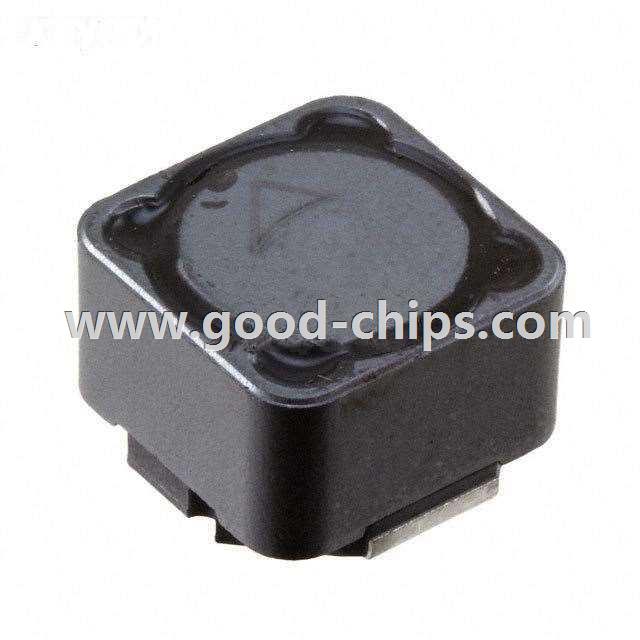

B82477P4823M

B82477P4823M
Manufacturer Part Number:B82477P4823M
Manufacturer:
Product Category:Fixed Inductors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:82µH Shielded Wirewound Inductor 2.1A 120 mOhm Max Nonstandard
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: B82477P4823M Datasheet
B82477P4823M´s Parameters
Internal Part Number898-B82477P4823M
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryInductors, Coils, Chokes
FamilyFixed Inductors
ManufacturerEPCOS (TDK)
SeriesB82477P4
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance82µH
Tolerance±20%
Current Rating2.1A
Current - Saturation2.25A
ShieldingShielded
DC Resistance (DCR)120 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
RatingsAEC-Q200
Operating Temperature-55°C ~ 150°C
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)0.335" (8.50mm)
Standard Package 350
Weight0.001 KG
ApplicationEmail for details
Replacement PartB82477P4823M
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

B82477P4823M is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82477P4823M is new and unused, you can buy B82477P4823M EPCOS (TDK) with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for B82477P4823M.
