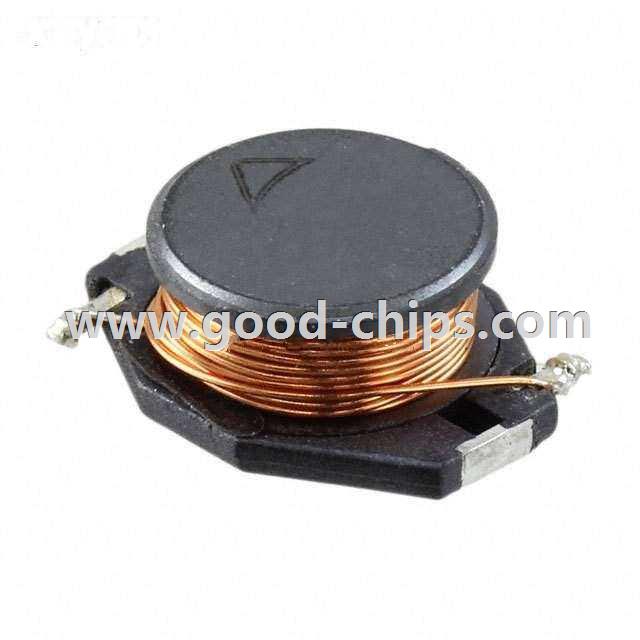

Manufacturer Part Number: | B82476B1334M100 |
---|---|
Manufacturer: | EPCOS (TDK) |
Product Category: | Fixed Inductors |
Available Quantity: | 9760 Pieces |
Unit Price: | Quote by Email |
Description: | 330µH Unshielded Wirewound Inductor 650mA 810 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | B82476B1334M100 Datasheet |
Internal Part Number | 898-B82476B1334M100 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | B82476B1 SMT Inductors | |
Online Catalog | B82476B1 Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | EPCOS (TDK) | |
Series | B82476B1 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 330µH | |
Tolerance | ±20% | |
Current Rating | 650mA | |
Current - Saturation | 600mA | |
Shielding | Unshielded | |
DC Resistance (DCR) | 810 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | AEC-Q200 | |
Operating Temperature | -55°C ~ 150°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.510" L x 0.370" W (12.95mm x 9.40mm) | |
Height - Seated (Max) | 0.200" (5.08mm) | |
Standard Package | 750 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | B82476B1334M100 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
B82476B1334M100 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82476B1334M100 is new and unused, you can buy B82476B1334M100 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82476B1334M100.
