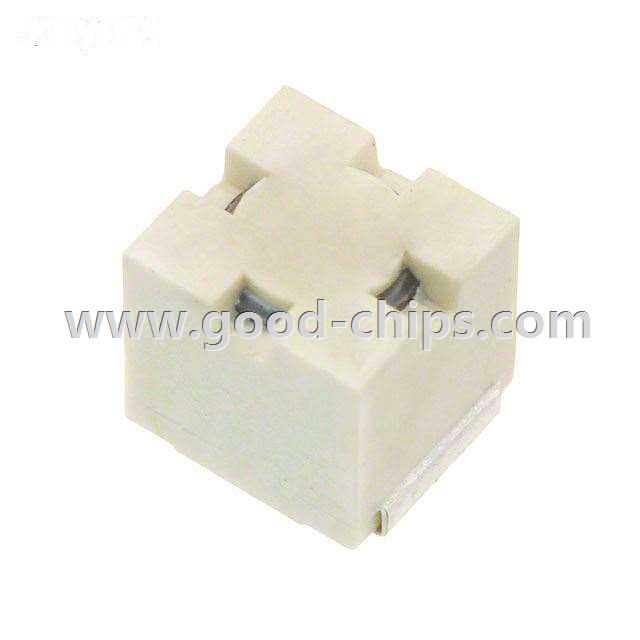

| Manufacturer Part Number: | B82442H1106K |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Fixed Inductors |
| Available Quantity: | 13510 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10mH Unshielded Wirewound Inductor 35mA 120 Ohm Max 2220 (5750 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82442H1106K Datasheet |
| Internal Part Number | 898-B82442H1106K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | SIMID Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | EPCOS (TDK) | |
| Series | SIMID | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 10mH | |
| Tolerance | ±10% | |
| Current Rating | 35mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 120 Ohm Max | |
| Q @ Freq | 30 @ 79.6kHz | |
| Frequency - Self Resonant | 500kHz | |
| Ratings | AEC-Q200 | |
| Operating Temperature | -55°C ~ 150°C | |
| Frequency - Test | 79.6kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 2220 (5750 Metric) | |
| Size / Dimension | 0.220" L x 0.197" W (5.60mm x 5.00mm) | |
| Height - Seated (Max) | 0.197" (5.00mm) | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82442H1106K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82442H1106K is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82442H1106K is new and unused, you can buy B82442H1106K EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82442H1106K.
