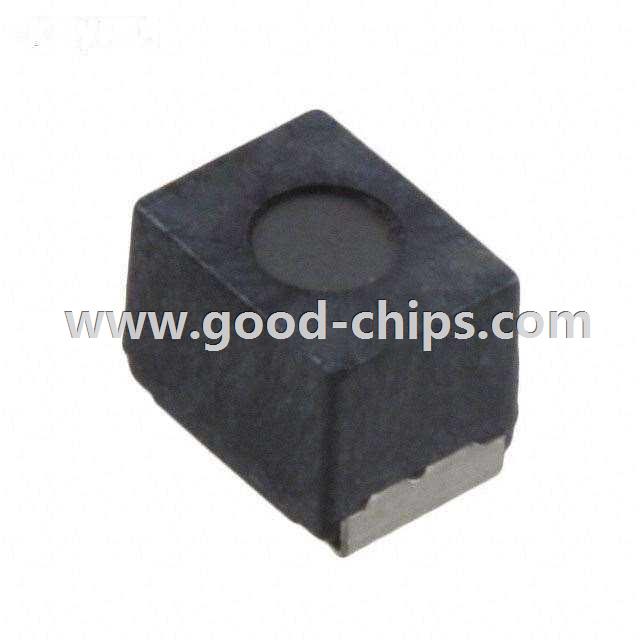

Manufacturer Part Number: | B82432T1683K |
---|---|
Manufacturer: | EPCOS (TDK) |
Product Category: | Fixed Inductors |
Available Quantity: | 11510 Pieces |
Unit Price: | Quote by Email |
Description: | 68µH Unshielded Wirewound Inductor 250mA 2.5 Ohm Max 1812 (4532 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | B82432T1683K Datasheet |
Internal Part Number | 898-B82432T1683K | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | SIMID Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | EPCOS (TDK) | |
Series | SIMID | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 68µH | |
Tolerance | ±10% | |
Current Rating | 250mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 2.5 Ohm Max | |
Q @ Freq | 10 @ 2.52MHz | |
Frequency - Self Resonant | 8MHz | |
Ratings | AEC-Q200 | |
Operating Temperature | -55°C ~ 150°C | |
Frequency - Test | 2.52MHz | |
Mounting Type | Surface Mount | |
Package / Case | 1812 (4532 Metric) | |
Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | |
Height - Seated (Max) | 0.134" (3.40mm) | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | B82432T1683K | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
B82432T1683K is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82432T1683K is new and unused, you can buy B82432T1683K EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82432T1683K.
