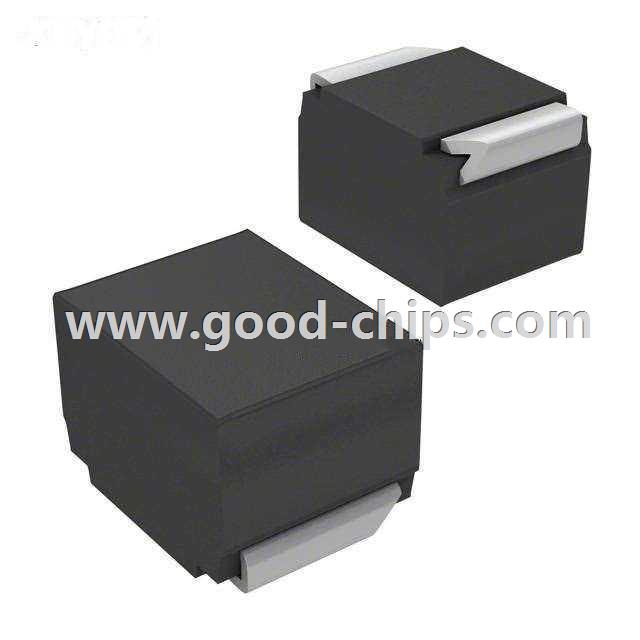

.jpg)
| Manufacturer Part Number: | B82422T1181K |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 180nH Unshielded Wirewound Inductor 450mA 190 mOhm Max 2-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82422T1181K Datasheet |
| Internal Part Number | 898-B82422T1181K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | B82422x Material 07/Oct/2011 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | EPCOS (TDK) | |
| Series | SIMID | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 180nH | |
| Tolerance | ±10% | |
| Current Rating | 450mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 190 mOhm Max | |
| Q @ Freq | 30 @ 25.2MHz | |
| Frequency - Self Resonant | 500MHz | |
| Ratings | AEC-Q200 | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 25.2MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD | |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Height - Seated (Max) | * | |
| Standard Package | 6,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82422T1181K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82422T1181K is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82422T1181K is new and unused, you can buy B82422T1181K EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82422T1181K.
