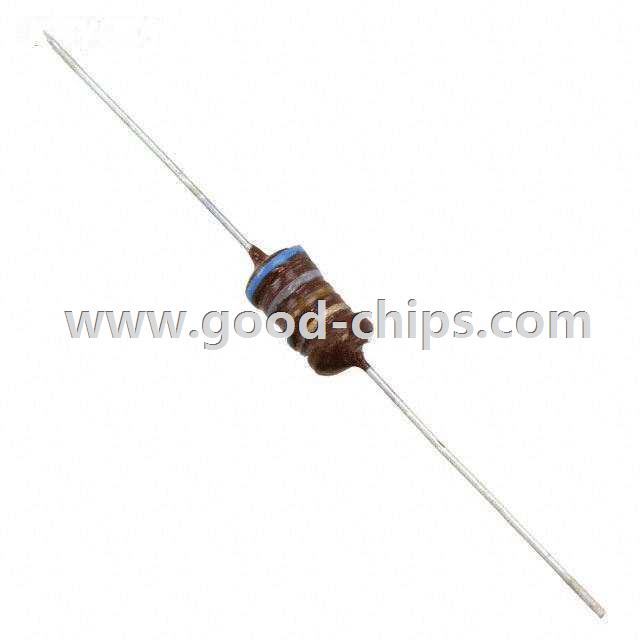

| Manufacturer Part Number: | B82145A1684J |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Fixed Inductors |
| Available Quantity: | 15260 Pieces |
| Unit Price: | Quote by Email |
| Description: | 680µH Unshielded Wirewound Inductor 440mA 2.5 Ohm Max Axial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82145A1684J Datasheet |
| Internal Part Number | 898-B82145A1684J | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | HLBC Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | EPCOS (TDK) | |
| Series | HLBC | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 680µH | |
| Tolerance | ±5% | |
| Current Rating | 440mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 2.5 Ohm Max | |
| Q @ Freq | 20 @ 796kHz | |
| Frequency - Self Resonant | 1.5MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Through Hole | |
| Package / Case | Axial | |
| Size / Dimension | 0.256" Dia x 0.472" L (6.50mm x 12.00mm) | |
| Height - Seated (Max) | - | |
| Standard Package | 1,250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82145A1684J | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82145A1684J is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82145A1684J is new and unused, you can buy B82145A1684J EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82145A1684J.
