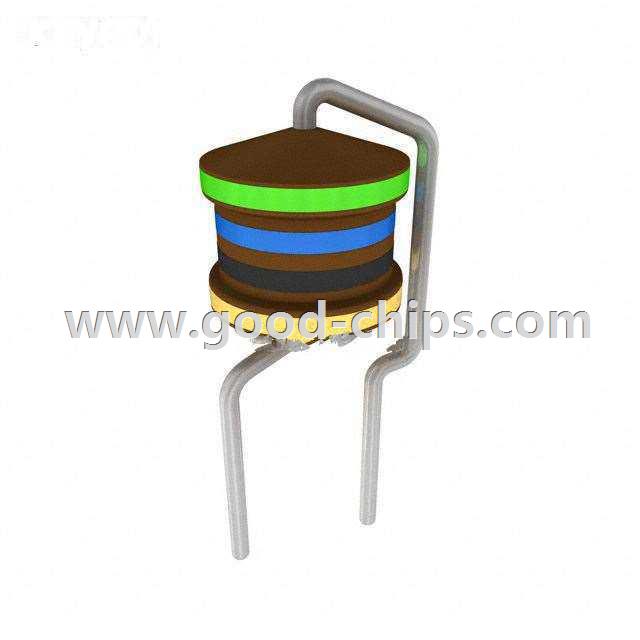

| Manufacturer Part Number: | B82144B2563J |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Fixed Inductors |
| Available Quantity: | 10985 Pieces |
| Unit Price: | Quote by Email |
| Description: | 56µH Unshielded Wirewound Inductor 1.6A 310 mOhm Max Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82144B2563J Datasheet |
| Internal Part Number | 898-B82144B2563J | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | LBC Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | EPCOS (TDK) | |
| Series | LBC | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 56µH | |
| Tolerance | ±5% | |
| Current Rating | 1.6A | |
| Current - Saturation | 1.3A | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 310 mOhm Max | |
| Q @ Freq | 40 @ 79.6kHz | |
| Frequency - Self Resonant | 6.8MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 0.256" Dia (6.50mm) | |
| Height - Seated (Max) | 0.551" (14.00mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82144B2563J | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82144B2563J is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82144B2563J is new and unused, you can buy B82144B2563J EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82144B2563J.
