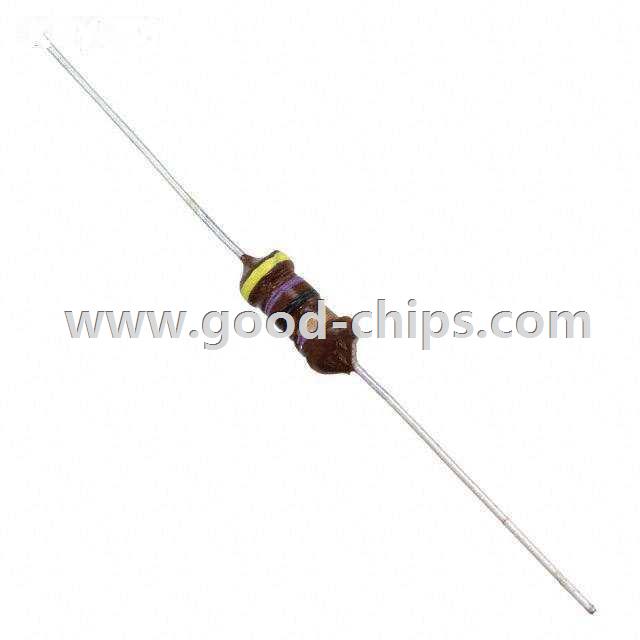

Manufacturer Part Number: | B82144A2473J |
---|---|
Manufacturer: | EPCOS (TDK) |
Product Category: | Fixed Inductors |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | 47µH Unshielded Wirewound Inductor 800mA 500 mOhm Max Axial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | B82144A2473J Datasheet |
Internal Part Number | 898-B82144A2473J | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | LBC Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | EPCOS (TDK) | |
Series | LBC | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 47µH | |
Tolerance | ±5% | |
Current Rating | 800mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 500 mOhm Max | |
Q @ Freq | 40 @ 2.52MHz | |
Frequency - Self Resonant | 5MHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 100kHz | |
Mounting Type | Through Hole | |
Package / Case | Axial | |
Size / Dimension | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | |
Height - Seated (Max) | - | |
Standard Package | 1,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | B82144A2473J | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
B82144A2473J is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82144A2473J is new and unused, you can buy B82144A2473J EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82144A2473J.
