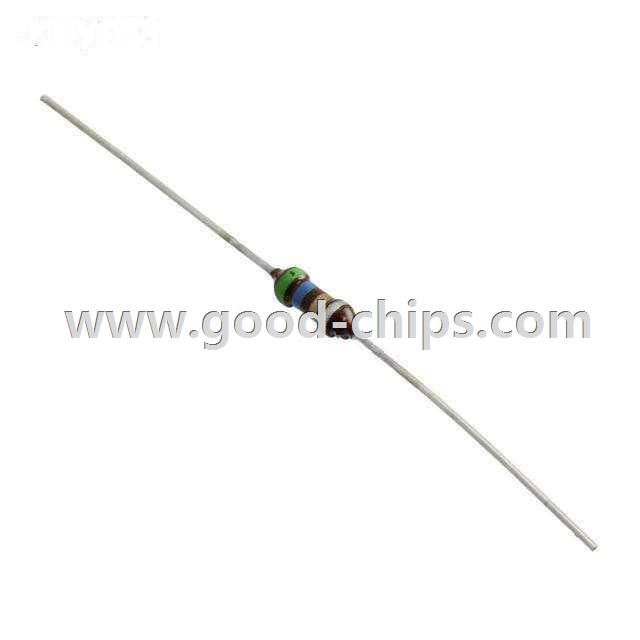

Manufacturer Part Number: | B78108S1562K |
---|---|
Manufacturer: | EPCOS (TDK) |
Product Category: | Fixed Inductors |
Available Quantity: | 19010 Pieces |
Unit Price: | Quote by Email |
Description: | 5.6µH Unshielded Wirewound Inductor 780mA 380 mOhm Max Axial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | B78108S1562K Datasheet |
Internal Part Number | 898-B78108S1562K | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | BC and BC+ Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | EPCOS (TDK) | |
Series | BC | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 5.6µH | |
Tolerance | ±10% | |
Current Rating | 780mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 380 mOhm Max | |
Q @ Freq | 60 @ 7.96MHz | |
Frequency - Self Resonant | 85MHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 7.96MHz | |
Mounting Type | Through Hole | |
Package / Case | Axial | |
Size / Dimension | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | |
Height - Seated (Max) | - | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | B78108S1562K | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
B78108S1562K is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B78108S1562K is new and unused, you can buy B78108S1562K EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B78108S1562K.
