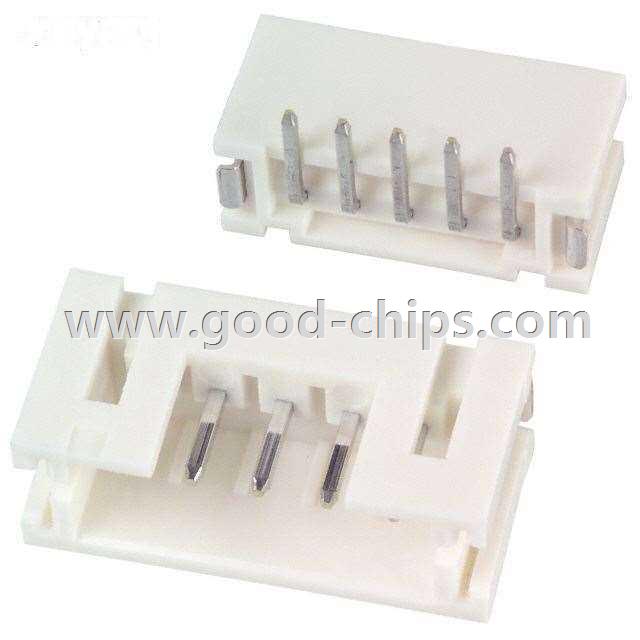

B5B-PH-SM3-TB

B5B-PH-SM3-TB
Manufacturer Part Number:B5B-PH-SM3-TB
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:5 Positions Header, Shrouded Connector 0.079" (2.00mm) Surface Mount Tin-Lead
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: B5B-PH-SM3-TB Datasheet
B5B-PH-SM3-TB´s Parameters
Internal Part Number898-B5B-PH-SM3-TB
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerJST Sales America Inc.
SeriesPH
PackagingCut Tape (CT)
Part StatusObsolete
Contact TypeMale Pin
Connector TypeHeader, Shrouded
Number of Positions5
Number of Positions LoadedAll
Pitch0.079" (2.00mm)
Number of Rows1
Row Spacing-
Contact Mating Length0.130" (3.30mm)
Mounting TypeSurface Mount
TerminationSolder
Fastening TypeDetent Lock
FeaturesSolder Retention
Contact FinishTin-Lead
Contact Finish Thickness-
ColorNatural
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartB5B-PH-SM3-TB
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

B5B-PH-SM3-TB is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of B5B-PH-SM3-TB is new and unused, you can buy B5B-PH-SM3-TB JST Sales America Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for B5B-PH-SM3-TB.
