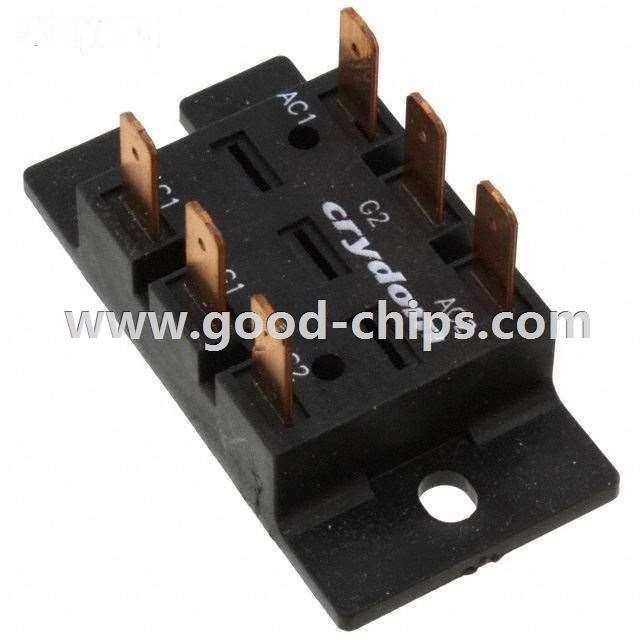

| Manufacturer Part Number: | B554-2T |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Thyristors - SCRs - Modules |
| Available Quantity: | 9025 Pieces |
| Unit Price: | Quote by Email |
| Description: | SCR Module 1200V 25A (DC) 1-Phase Controller - All SCRs Chassis Mount Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B554-2T Datasheet |
| Internal Part Number | 898-B554-2T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SCR Module Selection Guide Declaration of Conformity | |
| Product Training Modules | Solid State Relays | |
| 3D Model | B-2T Series, Circuit 1,2,3 & 5.sat B-2T Series, Circuit 1,2,3 & 5.dwg B-2T Series, Circuit 1,2,3 & 5.stp | |
| Online Catalog | B-2T, B-2 Series | |
| Category | Discrete Semiconductor Products | |
| Family | Thyristors - SCRs - Modules | |
| Manufacturer | Crydom Co. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Structure | 1-Phase Controller - All SCRs | |
| Number of SCRs, Diodes | 2 SCRs | |
| Voltage - Off State | 1200V | |
| Current - Gate Trigger (Igt) (Max) | 60mA | |
| Current - On State (It (AV)) (Max) | - | |
| Current - On State (It (RMS)) (Max) | 25A (DC) | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 250A @ 60Hz | |
| Current - Hold (Ih) (Max) | - | |
| Mounting Type | Chassis Mount | |
| Package / Case | Module | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B554-2T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B554-2T is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of B554-2T is new and unused, you can buy B554-2T Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B554-2T.
