| Manufacturer Part Number: | B32776G8206K |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Film Capacitors |
| Available Quantity: | 9425 Pieces |
| Unit Price: | Quote by Email |

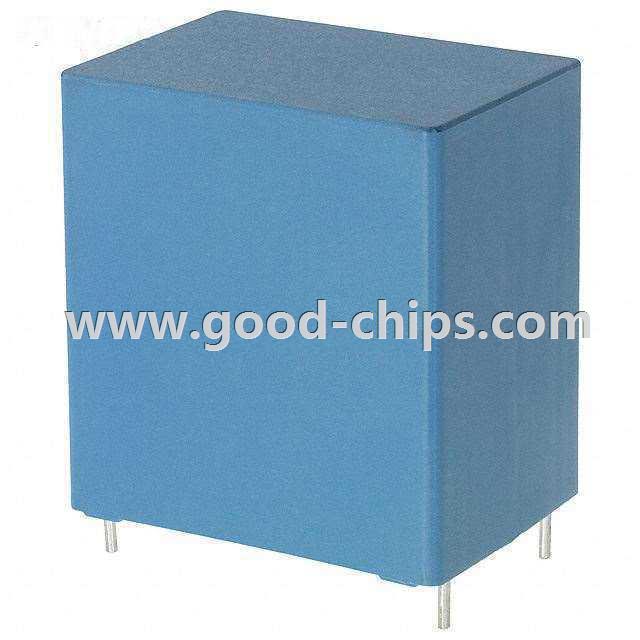

| Description: | 20µF Film Capacitor 800V Polypropylene (PP), Metallized Radial 1.654" L x 1.102" W (42.00mm x 28.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B32776G8206K Datasheet |
| Internal Part Number | 898-B32776G8206K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Film Capacitors Automotive Industry Capacitors | |
| Featured Product | Film Capacitors | |
| PCN Design/Specification | B32(5679)B333 Series 02/May/2014 | |
| PCN Packaging | MKT, MKP Type Laser Marking 26/Apr/2013 | |
| Online Catalog | B32774-78 Series | |
| Category | Capacitors | |
| Family | Film Capacitors | |
| Manufacturer | EPCOS (TDK) | |
| Series | B32776 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Capacitance | 20µF | |
| Tolerance | ±10% | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 800V | |
| Dielectric Material | Polypropylene (PP), Metallized | |
| ESR (Equivalent Series Resistance) | 5.5 mOhm | |
| Operating Temperature | -40°C ~ 105°C | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 1.654" L x 1.102" W (42.00mm x 28.00mm) | |
| Height - Seated (Max) | 1.457" (37.00mm) | |
| Termination | PC Pins | |
| Lead Spacing | 1.476" (37.50mm) | |
| Applications | DC Link, DC Filtering | |
| Features | Long Life | |
| Standard Package | 110 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B32776G8206K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B32776G8206K is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B32776G8206K is new and unused, you can buy B32776G8206K EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B32776G8206K.
