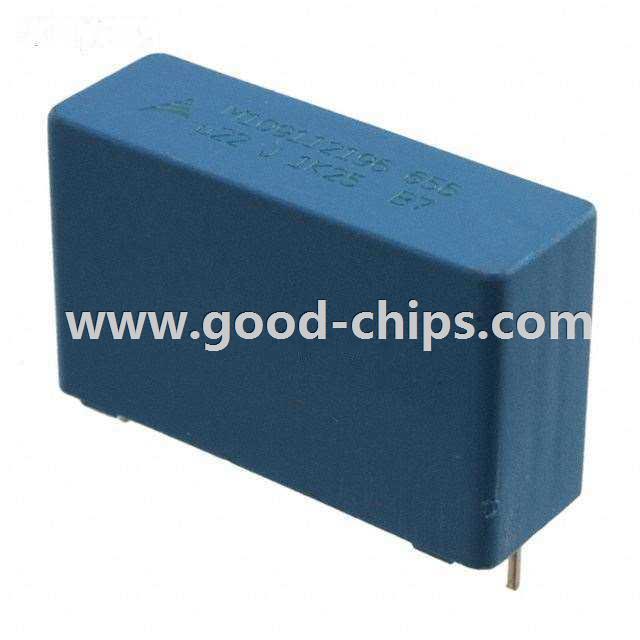

Manufacturer Part Number: | B32656A7224J |
---|---|
Manufacturer: | EPCOS (TDK) |
Product Category: | Film Capacitors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 0.22µF Film Capacitor 500V 1250V (1.25kV) Polypropylene (PP), Metallized Radial 1.654" L x 0.551" W (42.00mm x 14.00mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | B32656A7224J Datasheet |
Internal Part Number | 898-B32656A7224J | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Film Capacitors | |
PCN Design/Specification | B32(5679)B333 Series 02/May/2014 | |
PCN Packaging | MKT, MKP Type Laser Marking 26/Apr/2013 | |
Category | Capacitors | |
Family | Film Capacitors | |
Manufacturer | EPCOS (TDK) | |
Series | B32656 | |
Packaging | Bulk | |
Part Status | Active | |
Capacitance | 0.22µF | |
Tolerance | ±5% | |
Voltage Rating - AC | 500V | |
Voltage Rating - DC | 1250V (1.25kV) | |
Dielectric Material | Polypropylene (PP), Metallized | |
ESR (Equivalent Series Resistance) | - | |
Operating Temperature | -55°C ~ 100°C | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 1.654" L x 0.551" W (42.00mm x 14.00mm) | |
Height - Seated (Max) | 0.984" (25.00mm) | |
Termination | PC Pins | |
Lead Spacing | 1.476" (37.50mm) | |
Applications | DC Link, DC Filtering; High Pulse, DV/DT | |
Features | - | |
Standard Package | 1,380 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | B32656A7224J | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
B32656A7224J is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B32656A7224J is new and unused, you can buy B32656A7224J EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B32656A7224J.
