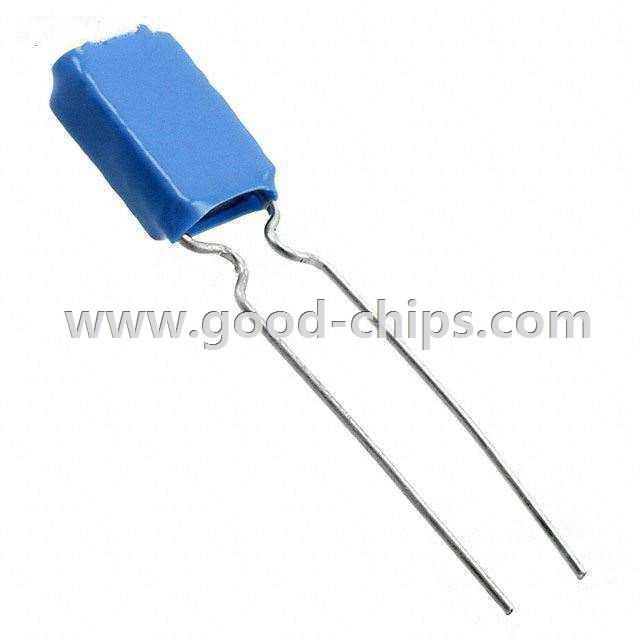

Manufacturer Part Number: | B32559C8822K289 |
---|---|
Manufacturer: | EPCOS (TDK) |
Product Category: | Film Capacitors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 8200pF Film Capacitor 400V 630V Polyester, Polyethylene Terephthalate (PET) - Stacked Radial 0.276" L x 0.138" W (7.00mm x 3.50mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | B32559C8822K289 Datasheet |
Internal Part Number | 898-B32559C8822K289 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | B32(5679)B333 Series 02/May/2014 | |
Category | Capacitors | |
Family | Film Capacitors | |
Manufacturer | EPCOS (TDK) | |
Series | B32559 | |
Packaging | Tape & Box (TB) | |
Part Status | Active | |
Capacitance | 8200pF | |
Tolerance | ±10% | |
Voltage Rating - AC | 400V | |
Voltage Rating - DC | 630V | |
Dielectric Material | Polyester, Polyethylene Terephthalate (PET) - Stacked | |
ESR (Equivalent Series Resistance) | - | |
Operating Temperature | -55°C ~ 125°C | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 0.276" L x 0.138" W (7.00mm x 3.50mm) | |
Height - Seated (Max) | 0.551" (14.00mm) | |
Termination | PC Pins | |
Lead Spacing | 0.197" (5.00mm) | |
Applications | High Pulse, DV/DT | |
Features | - | |
Standard Package | 2,300 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | B32559C8822K289 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
B32559C8822K289 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B32559C8822K289 is new and unused, you can buy B32559C8822K289 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B32559C8822K289.
