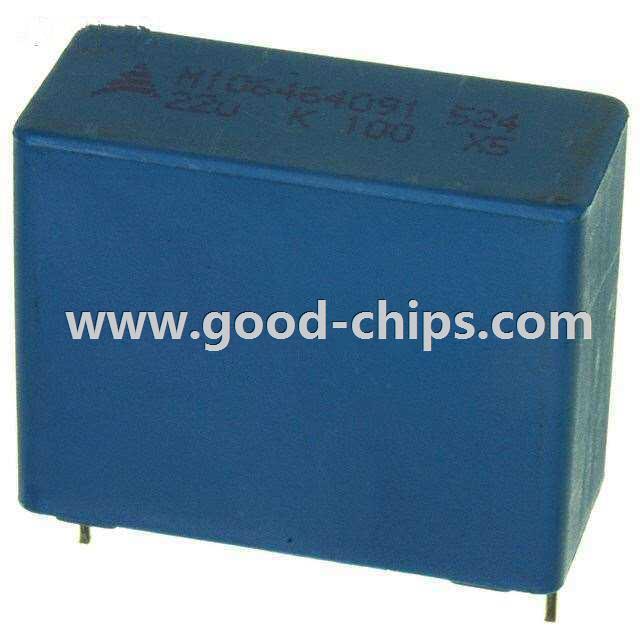

| Manufacturer Part Number: | B32524Q1226K |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Film Capacitors |
| Available Quantity: | 12354 Pieces |
| Unit Price: | Quote by Email |
| Description: | 22µF Film Capacitor 63V 100V Polyester, Polyethylene Terephthalate (PET), Metallized Radial 1.240" L x 0.532" W (31.50mm x 13.50mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B32524Q1226K Datasheet |
| Internal Part Number | 898-B32524Q1226K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Automotive Industry Capacitors | |
| Featured Product | Film Capacitors | |
| PCN Design/Specification | B32(5679)B333 Series 02/May/2014 | |
| PCN Packaging | MKT, MKP Type Laser Marking 26/Apr/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | B32520-29 Series | |
| Category | Capacitors | |
| Family | Film Capacitors | |
| Manufacturer | EPCOS (TDK) | |
| Series | B32524 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Capacitance | 22µF | |
| Tolerance | ±10% | |
| Voltage Rating - AC | 63V | |
| Voltage Rating - DC | 100V | |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized | |
| ESR (Equivalent Series Resistance) | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 1.240" L x 0.532" W (31.50mm x 13.50mm) | |
| Height - Seated (Max) | 0.906" (23.00mm) | |
| Termination | PC Pins | |
| Lead Spacing | 1.083" (27.50mm) | |
| Applications | Automotive; EMI, RFI Suppression | |
| Features | - | |
| Standard Package | 260 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B32524Q1226K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B32524Q1226K is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B32524Q1226K is new and unused, you can buy B32524Q1226K EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B32524Q1226K.
