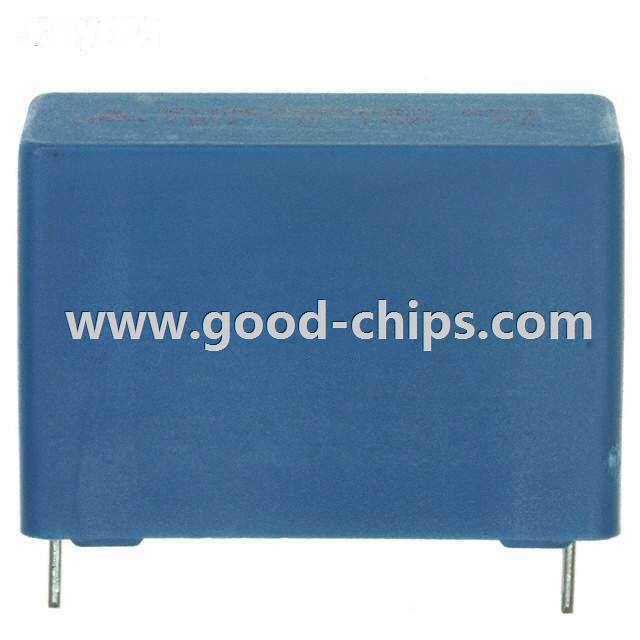

B32524Q1156K

B32524Q1156K
Manufacturer Part Number:B32524Q1156K
Manufacturer:
Product Category:Film Capacitors
Available Quantity:11148 Pieces
Unit Price:Quote by Email
Description:15µF Film Capacitor 63V 100V Polyester, Polyethylene Terephthalate (PET), Metallized Radial 1.240" L x 0.433" W (31.50mm x 11.00mm)
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: B32524Q1156K Datasheet
B32524Q1156K´s Parameters
Internal Part Number898-B32524Q1156K
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesAutomotive Industry Capacitors
Featured ProductFilm Capacitors
PCN Design/SpecificationB32(5679)B333 Series 02/May/2014
PCN PackagingMKT, MKP Type Laser Marking 26/Apr/2013
Online Catalog B32520-29 Series
CategoryCapacitors
FamilyFilm Capacitors
ManufacturerEPCOS (TDK)
SeriesB32524
PackagingBulk
Part StatusActive
Capacitance15µF
Tolerance±10%
Voltage Rating - AC63V
Voltage Rating - DC100V
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET), Metallized
ESR (Equivalent Series Resistance)-
Operating Temperature-55°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseRadial
Size / Dimension1.240" L x 0.433" W (31.50mm x 11.00mm)
Height - Seated (Max)0.827" (21.00mm)
TerminationPC Pins
Lead Spacing1.083" (27.50mm)
ApplicationsAutomotive; EMI, RFI Suppression
Features-
Standard Package 320
Weight0.001 KG
ApplicationEmail for details
Replacement PartB32524Q1156K
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

B32524Q1156K is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B32524Q1156K is new and unused, you can buy B32524Q1156K EPCOS (TDK) with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for B32524Q1156K.
