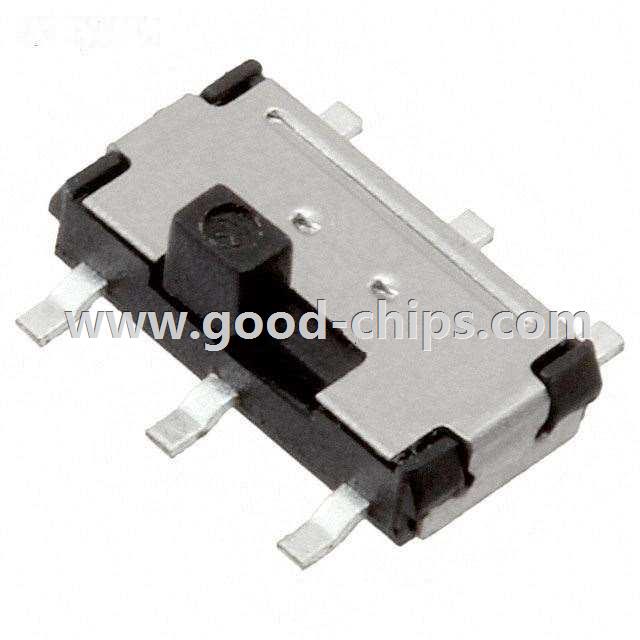

| Manufacturer Part Number: | AYZ0202AGRLC |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Slide Switches |
| Available Quantity: | 28967 Pieces |
| Unit Price: | Quote by Email |
| Description: | Slide Switch DPDT Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AYZ0202AGRLC Datasheet |
| Internal Part Number | 898-AYZ0202AGRLC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| 3D Model | AYZ0202AGRLC.stp AYZ0202AGRLC.pdf | |
| Online Catalog | AYZ Series | |
| Category | Switches | |
| Family | Slide Switches | |
| Manufacturer | C&K Components | |
| Series | AYZ | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Circuit | DPDT | |
| Contact Timing | Not Specified | |
| Switch Function | On-On | |
| Current Rating | 100mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 12V | |
| Actuator Type | Standard | |
| Actuator Length | 1.00mm | |
| Contact Material | Copper Alloy | |
| Contact Finish | Silver | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Features | - | |
| Actuator Material | Polyamide (PA46), Nylon 4/6, Glass Filled | |
| Switch Travel | - | |
| Operating Temperature | -10°C ~ 60°C | |
| Mechanical Life | 10,000 Cycles | |
| Electrical Life | - | |
| Operating Force | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AYZ0202AGRLC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AYZ0202AGRLC is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of AYZ0202AGRLC is new and unused, you can buy AYZ0202AGRLC C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AYZ0202AGRLC.
