| Manufacturer Part Number: | AXT638124 |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

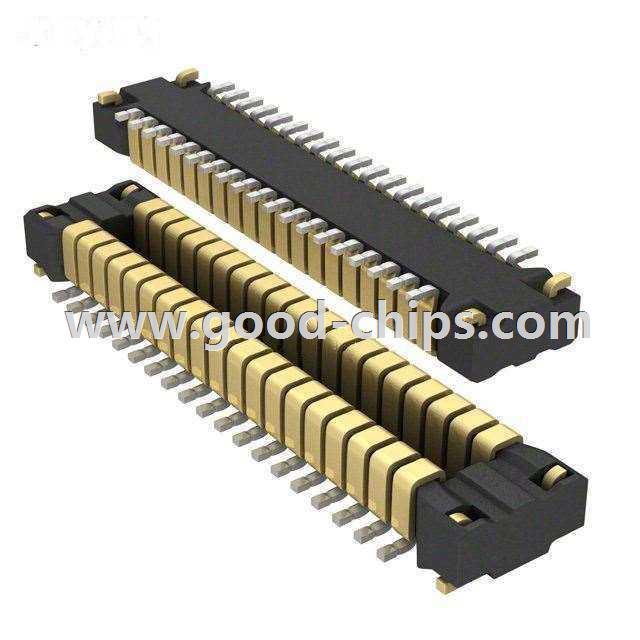

| Description: | 38 Position Connector Header, Center Strip Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AXT638124 Datasheet |
| Internal Part Number | 898-AXT638124 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Connectors SMD-Technical Info How to Read Date Codes | |
| Product Training Modules | Tough Contact Connectors | |
| Featured Product | Tough Contact Connector Series Hot New Technologies | |
| PCN Obsolescence/ EOL | F4S(18,38,46) Jan/2013 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | Panasonic Electric Works | |
| Series | F4S | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Connector Type | Header, Center Strip Contacts | |
| Number of Positions | 38 | |
| Pitch | 0.016" (0.40mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Mated Stacking Heights | 1mm | |
| Height Above Board | 0.033" (0.84mm) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AXT638124 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AXT638124 is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of AXT638124 is new and unused, you can buy AXT638124 Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AXT638124.
