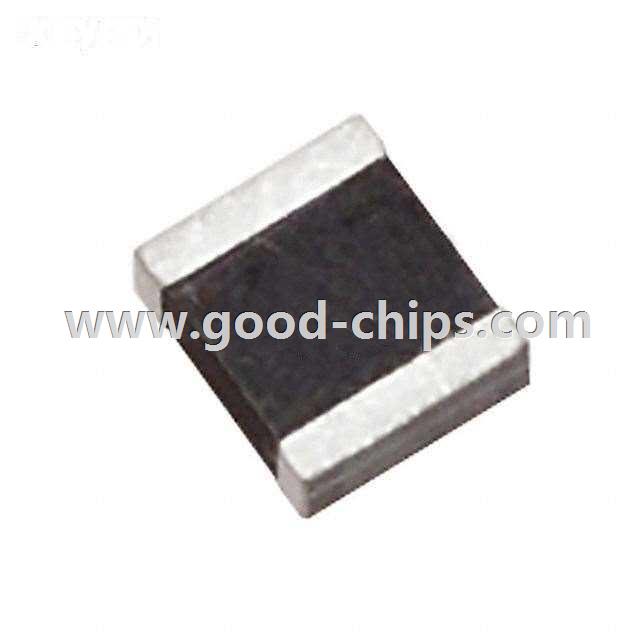

| Manufacturer Part Number: | AWSZT-24.00CW-T |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Resonators |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 24MHz Ceramic Resonator ±0.2% 60 Ohm -25°C ~ 85°C Surface Mount |
| Lead Free Status / RoHS Status: | Contains lead / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AWSZT-24.00CW-T Datasheet |
| Internal Part Number | 898-AWSZT-24.00CW-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | AWSZT-CW.pdf AWSZT-CW.stp | |
| Online Catalog | AWSZT-CW Series | |
| Category | Crystals and Oscillators | |
| Family | Resonators | |
| Manufacturer | Abracon LLC | |
| Series | AWSZT-CW | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Ceramic | |
| Frequency | 24MHz | |
| Frequency Stability | ±0.2% | |
| Frequency Tolerance | ±0.5% | |
| Features | - | |
| Capacitance | - | |
| Impedance | 60 Ohm | |
| Operating Temperature | -25°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, No Lead (DFN, LCC) | |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Height | 0.047" (1.20mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AWSZT-24.00CW-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AWSZT-24.00CW-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AWSZT-24.00CW-T is new and unused, you can buy AWSZT-24.00CW-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AWSZT-24.00CW-T.
