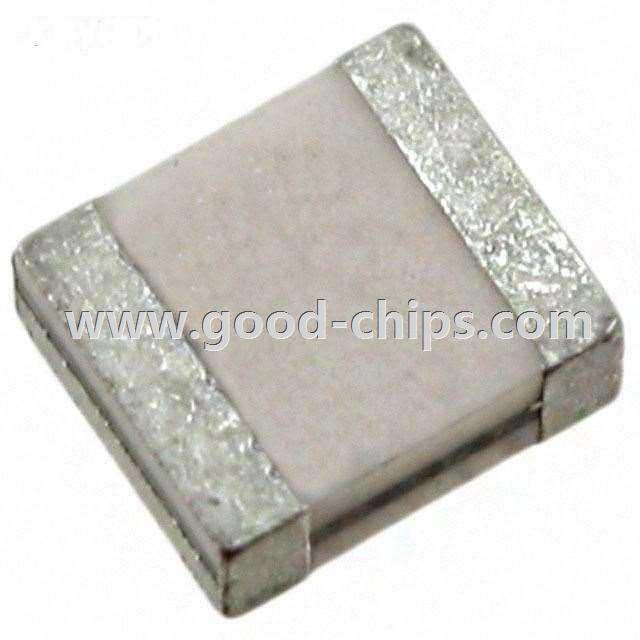

Manufacturer Part Number: | AWSZT-16.93CV-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Resonators |
Available Quantity: | 11010 Pieces |
Unit Price: | Quote by Email |
Description: | 16.93MHz Ceramic Resonator ±0.3% 40 Ohm -25°C ~ 85°C Surface Mount |
Lead Free Status / RoHS Status: | Contains lead / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AWSZT-16.93CV-T Datasheet |
Internal Part Number | 898-AWSZT-16.93CV-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AWSZT-CV.pdf AWSZT-CV.stp | |
Online Catalog | AWSZT-CV Series | |
Category | Crystals and Oscillators | |
Family | Resonators | |
Manufacturer | Abracon LLC | |
Series | AWSZT-CV | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Ceramic | |
Frequency | 16.93MHz | |
Frequency Stability | ±0.3% | |
Frequency Tolerance | ±0.5% | |
Features | - | |
Capacitance | - | |
Impedance | 40 Ohm | |
Operating Temperature | -25°C ~ 85°C | |
Mounting Type | Surface Mount | |
Package / Case | 1512 (3731 Metric) | |
Size / Dimension | 0.146" L x 0.122" W (3.70mm x 3.10mm) | |
Height | 0.047" (1.20mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AWSZT-16.93CV-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AWSZT-16.93CV-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AWSZT-16.93CV-T is new and unused, you can buy AWSZT-16.93CV-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AWSZT-16.93CV-T.
