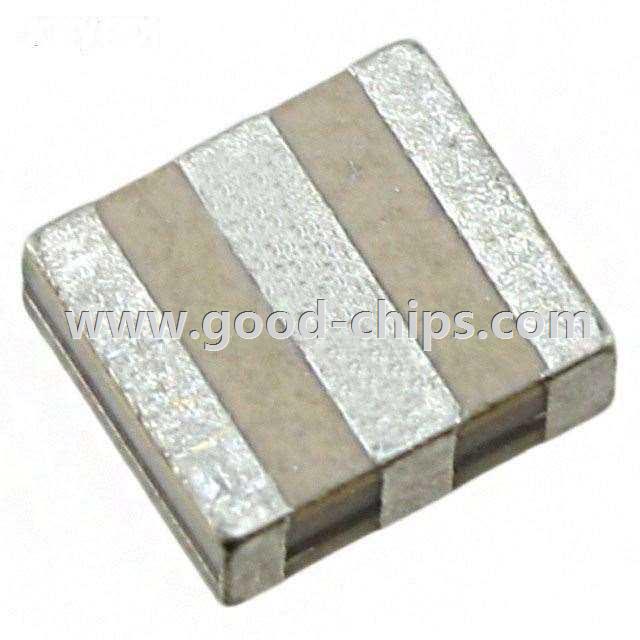

| Manufacturer Part Number: | AWSCR-16.00MTD-T |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Resonators |
| Available Quantity: | 16010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 16MHz Ceramic Resonator Built in Capacitor 22pF ±0.5% 40 Ohm -40°C ~ 85°C Surface Mount |
| Lead Free Status / RoHS Status: | Contains lead / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AWSCR-16.00MTD-T Datasheet |
| Internal Part Number | 898-AWSCR-16.00MTD-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | AWSCR-MTD.pdf AWSCR-MTD.stp | |
| Online Catalog | AWSCR-MT Series | |
| Category | Crystals and Oscillators | |
| Family | Resonators | |
| Manufacturer | Abracon LLC | |
| Series | AWSCR-MT | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Ceramic | |
| Frequency | 16MHz | |
| Frequency Stability | ±0.5% | |
| Frequency Tolerance | ±0.5% | |
| Features | Built in Capacitor | |
| Capacitance | 22pF | |
| Impedance | 40 Ohm | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 3-SMD, Non-Standard | |
| Size / Dimension | 0.185" L x 0.161" W (4.70mm x 4.10mm) | |
| Height | 0.067" (1.70mm) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AWSCR-16.00MTD-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AWSCR-16.00MTD-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AWSCR-16.00MTD-T is new and unused, you can buy AWSCR-16.00MTD-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AWSCR-16.00MTD-T.
