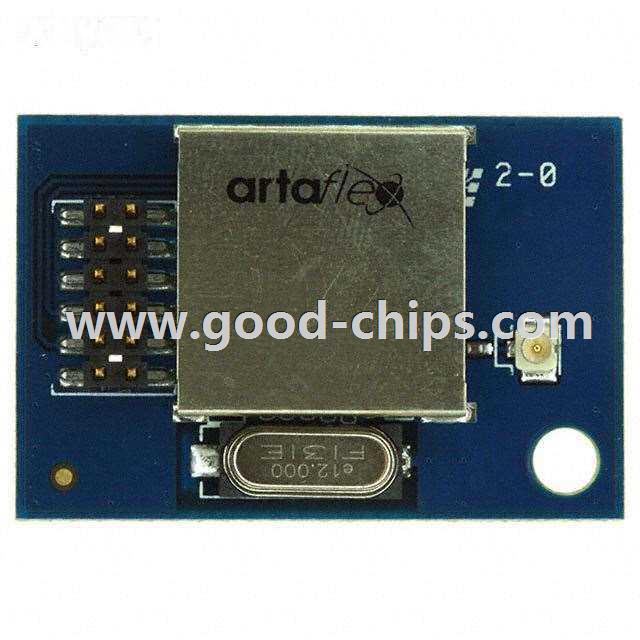

| Manufacturer Part Number: | AWS24S |
|---|---|
| Manufacturer: | Artaflex Inc. |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MODULE ISM>1GHZ U.FL ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AWS24S Datasheet |
| Internal Part Number | 898-AWS24S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Artaflex Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| RF Family/Standard | General ISM > 1GHZ | |
| Protocol | - | |
| Modulation | DSSS, GFSK | |
| Frequency | 2.4GHz | |
| Data Rate | 1Mbps | |
| Power - Output | 4dBm | |
| Sensitivity | -97dBm | |
| Serial Interfaces | SPI | |
| Antenna Type | Not Included, U.FL | |
| Memory Size | - | |
| Voltage - Supply | 2.4 V ~ 3.6 V | |
| Current - Receiving | 20.8mA ~ 34.1mA | |
| Current - Transmitting | 18.4mA ~ 21.2mA | |
| Mounting Type | Through Hole | |
| Operating Temperature | 0°C ~ 70°C | |
| Package / Case | PCB Module | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AWS24S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AWS24S is in stock for immediate shipping now. We are the distributor of Artaflex Inc. all series components. The condition of AWS24S is new and unused, you can buy AWS24S Artaflex Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AWS24S.
