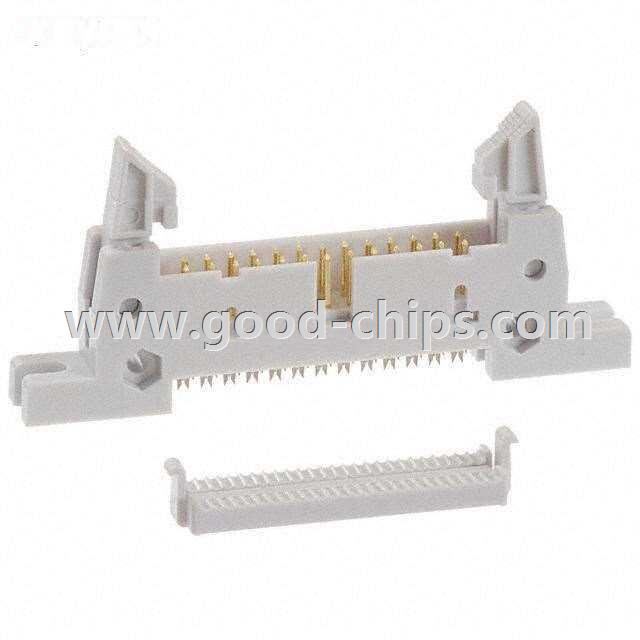

Manufacturer Part Number: | AWH 26G-E222-IDC |
---|---|
Manufacturer: | Assmann WSW Components |
Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 26 Position Rectangular Header Connector IDC Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AWH 26G-E222-IDC Datasheet |
Internal Part Number | 898-AWH 26G-E222-IDC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Assmann - IDC Connectors and Cables | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Free Hanging, Panel Mount | |
Manufacturer | Assmann WSW Components | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Header | |
Contact Type | Male Pin | |
Number of Positions | 26 | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Mounting Type | Panel Mount | |
Fastening Type | Latch Lock/Eject Hooks, Short | |
Cable Termination | IDC | |
Wire Type | Ribbon Cable | |
Wire Gauge | - | |
Features | Feed Through | |
Contact Finish | Gold | |
Contact Finish Thickness | - | |
Color | Gray | |
Standard Package | 72 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AWH 26G-E222-IDC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AWH 26G-E222-IDC is in stock for immediate shipping now. We are the distributor of Assmann WSW Components all series components. The condition of AWH 26G-E222-IDC is new and unused, you can buy AWH 26G-E222-IDC Assmann WSW Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AWH 26G-E222-IDC.
